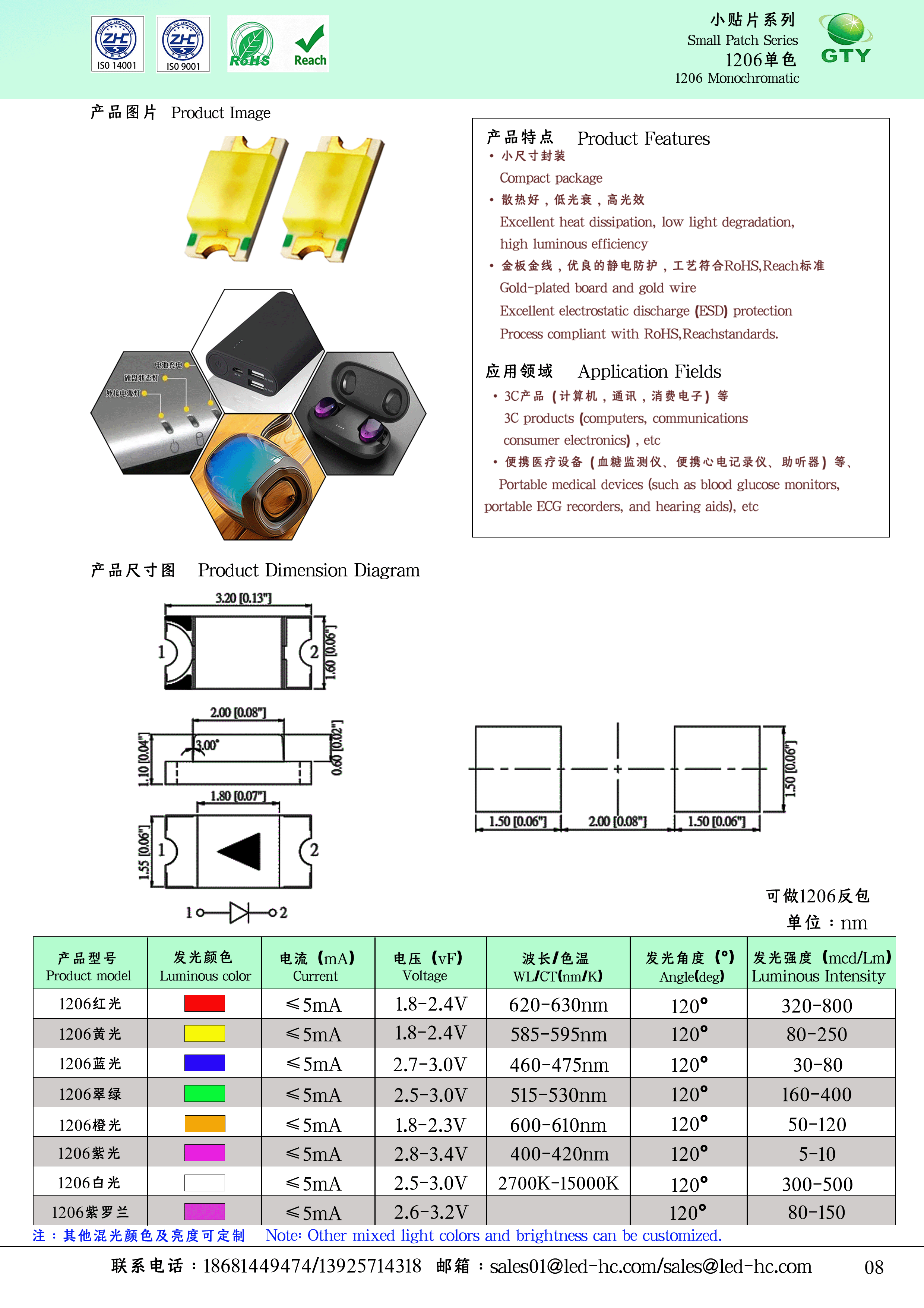

1206 SMD LED
1206 SMD LEDs - Hongcheng Optoelectronics LED Manufacturer
Product Overview
The 1206 SMD LED is a commonly used SMD light source offering high brightness, a moderately sized emitting area, good color consistency, good heat dissipation and easy placement.
Key Advantages
• Versatile package: The widely used 1206 size suits various electronics and lighting structures
• Bright and stable: Uniform light and stable brightness for volume production
• Good heat dissipation: the moderate package size helps improve product stability
• Easy placement: Supports automated SMT production with efficient soldering
• Multiple colors: Custom red, yellow, blue, green, white, warm white, orange, violet and other colors available
• Binning available: Brightness, wavelength, voltage and other parameters can be binned to improve finished-product consistency
Applications
• Electronic product indicators
• Instrument and meter display indicators
• Home appliance control panel backlighting
• Communication equipment status indication
• LED strips and light bars
• Advertising lightboxes and signage lighting
• Gifts and decorative lighting
Product Features
Chips: Grade A chips from leading brands in Taiwan and mainland China deliver lasting luminous efficacy, stable output and strong ESD resistance. Withstands two reflow soldering cycles and has passed thermal shock testing.
Gold wire: 99.99% pure gold wire bonding provides good conductivity, rapid heat transfer and strong stability.
Encapsulant: high-quality material resists sulfurization and blue-light degradation, improving brightness and reliability.
Lead frame: gold-plated/silver-plated options offer good thermal conductivity, easy solder wetting and oxidation resistance.
Packaging: Vacuum moisture-resistant packaging; reel/tape packaging is available for automated SMD production.
Category: 1206 SMD LEDs ｜ Small SMD LED Series
Quick Reference: Key Optoelectronic Parameters (by Emission Color)
Test conditions: See the IF column for test current; ambient temperature 25℃. Data is taken from each model's datasheet. “—” indicates that the datasheet does not specify this item. Download the corresponding PDF for complete specifications.
| Emission Color | Part Number | Forward Voltage VF (V) | Wavelength λp / Color Temperature CCT | Luminous Intensity Iv (mcd) | Viewing Angle 2θ½ (°) | Test Current IF (mA) | Operating Temperature |
|---|---|---|---|---|---|---|---|
| Red | HC-J3216DHR20TP-F1 | 1.7~2.5 | 620~630 nm | 80~250 | 120 | 20 | -40 ~ +80℃ |
| Pure Green | HC-J3216DHG20TP-F1 | 2.5~3 | 515~530 nm | 160~400 | 120 | 5 | -40 ~ +80℃ |
| Blue | HC-J3216CHB70TP-F1 | 2.7~3 | 460~475 nm | 30~80 | 120 | 5 | -40 ~ +80℃ |
| Yellow | HC-J3216DHY90TP-F1 | 1.8~2.4 | 586~596 nm | 100~150 | 120 | 20 | -40 ~ +80℃ |
| Orange | HC-S3216DHO05TP-F1 | 1.8~2.3 | 600~610 nm | 50~120 | 120 | 10 | -40 ~ +80℃ |
| Yellow-green | HC-S3216DHG68TP-F1 | 1.7~2.5 | 566~576 nm | 25~50 | 120 | 20 | -40 ~ +80℃ |
| White | HC-1206TWC-AL-3 | 2.5~3 | 7000~10000 K | 300~500 | 120 | 5 | -40 ~ +80℃ |
1206 SMD LED An LED indicator in a 1206 SMD package (3.2×1.6mm), with a forward voltage of 2.0-3.4V (depending on color) and a standard drive current of 5mA (refer to the datasheet). A mature, reliable design that is easy to inspect by AOI. Available emission colors include red/yellow/green/blue/white, for industrial equipment status indication and instrument panels. Supplied directly by Dongguan Hongcheng Optoelectronics Co., Ltd. (an international member of Guangyu Group, with over 20 years of LED packaging experience). Uses A-grade chips and 99.99% pure gold wire bonding, with RoHS certification. Free samples and custom specifications are available. Download the datasheet PDF on this page for complete electrical specifications (voltage, brightness, wavelength, current, dimensional drawings, pad design and tape-and-reel packaging).
Q: What placement-machine accuracy does this LED require?
A: This product uses a 1206 package (3.2×1.6mm) with relatively large pads. Standard high-speed placement machines are adequate, with no special equipment accuracy requirements. Supports lead-free reflow soldering (peak ≤260℃/≤3s).
Product Specifications at a Glance
| Product Name | 1206 SMD LED |
|---|---|
| Package: | SMD package |
| Dimensions | 3.2×1.6mm |
| Mounting: | SMD surface mounting (suitable for reflow soldering) |
| Emission Color | Single colors available (red, yellow, blue, green, white, etc.) |
| Environmental Certification | RoHS |
| Packaging Quantity | 3,000 pcs/Reel (Tape and Reel) |
| Manufacturer | Dongguan Hongcheng Optoelectronics Co., Ltd. |
| Customization: | Custom colors, brightness and wavelength binning, and encapsulants available; confirm details when requesting a quote |
| Detailed Specifications | See the datasheet PDF on this page for complete electrical parameters |
| Minimum Order Quantity (MOQ) | 3K (3,000 pcs, 1 taped reel) |
| Sample Lead Time | Typically 3-4 working days |
| Volume Production Lead Time | Typically 10-15 working days |
💡 Typical Applications: Common applications include PCB status indication, backlighting and ambient lighting. Supports fully automatic SMT assembly and reflow soldering.
Forward Voltage and Wavelength Quick Reference by Color
Voltage varies significantly between colors in the same package. Select current-limiting resistors using the values for the specific color:
| Emission Color | Wavelength Range | Forward Voltage | Chip Material |
|---|---|---|---|
| Red | 620~630nm | 1.8~2.4V | GaASP/GaP |
| Yellow | 585~595nm | 1.8~2.4V | AlGaInP |
| Orange | 600~610nm | 1.8~2.4V | AlGaInP |
| Standard Green | 565~575nm | 1.8~2.4V | AlGaInP |
| Emerald Green | 510~520nm | 2.6~3.2V | InGaN |
| Blue | 450~470nm | 2.8~3.4V | InGaN |
| White | CCT 15000~25000K | 2.8~3.4V | InGaN + phosphor |
Selection and Application Guidance
1206 is a primary package for industrial-grade SMD indicator LEDs. Its 3.2×1.6mm pad footprint provides a wider reflow soldering process window and greater reliability margins in AOI automated optical inspection and high/low-temperature cycling. It is therefore widely selected for industrial controllers, PLC status indication, auxiliary automotive electronic indicators and outdoor instruments. Hongcheng Optoelectronics' 1206 series uses Grade A chips + pure gold wire + imported high-temperature-resistant silicone. Even mid-range versions achieve an L70 life of 15000~25000 hours, while high-end versions suit long-term operation at -40℃~105℃.
Ordering and Inquiry Information
SMD models use tape-and-reel packaging (quantity per reel is subject to the corresponding datasheet), with minimum orders in full reels. Sample lead time is typically 3-4 working days; volume production lead time is typically 10-15 working days (subject to order confirmation). For volume pricing, use the inquiry link on this page or phone/WeChat 139 2571 4318. Specify the exact part number and quantity.
Selection Recommendations
Forward voltage varies considerably by color/model (commonly 1.8~3.4V). Calculate current-limiting resistors using the VF range in the selected model's datasheet, and set the reflow profile according to the corresponding datasheet.
Related Reading: LED Indicator Part Number Comparison Table (Complete 2026 Edition) ｜ Datasheet Download Center
Note: The parameters on this page were compiled against product documentation on 2026-09-17. Items not provided in a datasheet are not assigned uniform values. Refer to the datasheet for the relevant part number.
