Product Overview:
The 5mm tall-lens through-hole LED is a through-hole light-emitting diode with a 5mm tall-lens package, featuring a clearly defined body outline, concentrated emitting area and easy installation. It suits products with specific lens height and panel mounting position requirements. Emission color, brightness, wavelength, lens color and lead length can be customized to customer requirements.
Key Advantages:
- 5mm tall-lens package with a clearly defined body outline
- Tall-lens structure suits corresponding panel mounting positions
- Two-lead through-hole design for easy installation and soldering

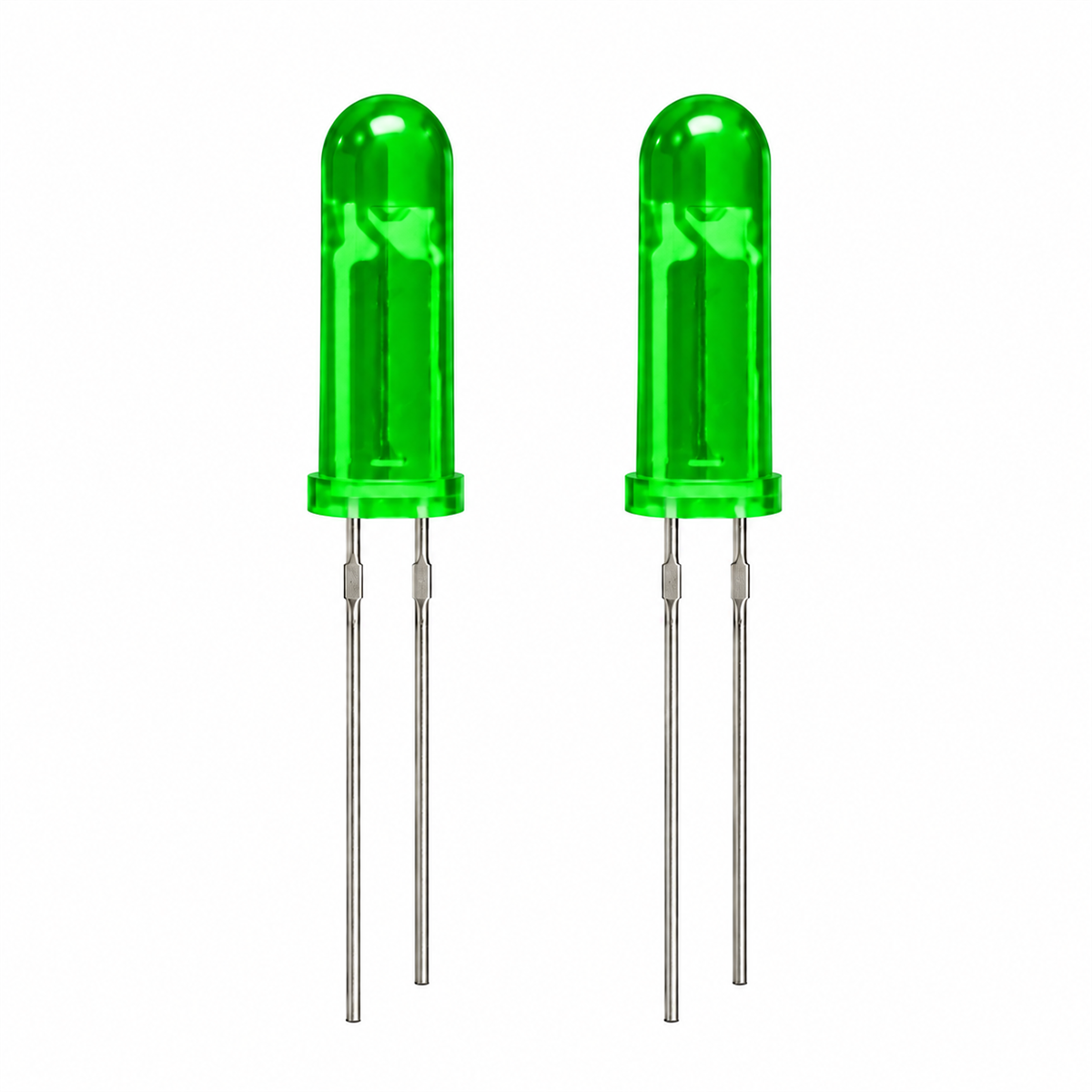

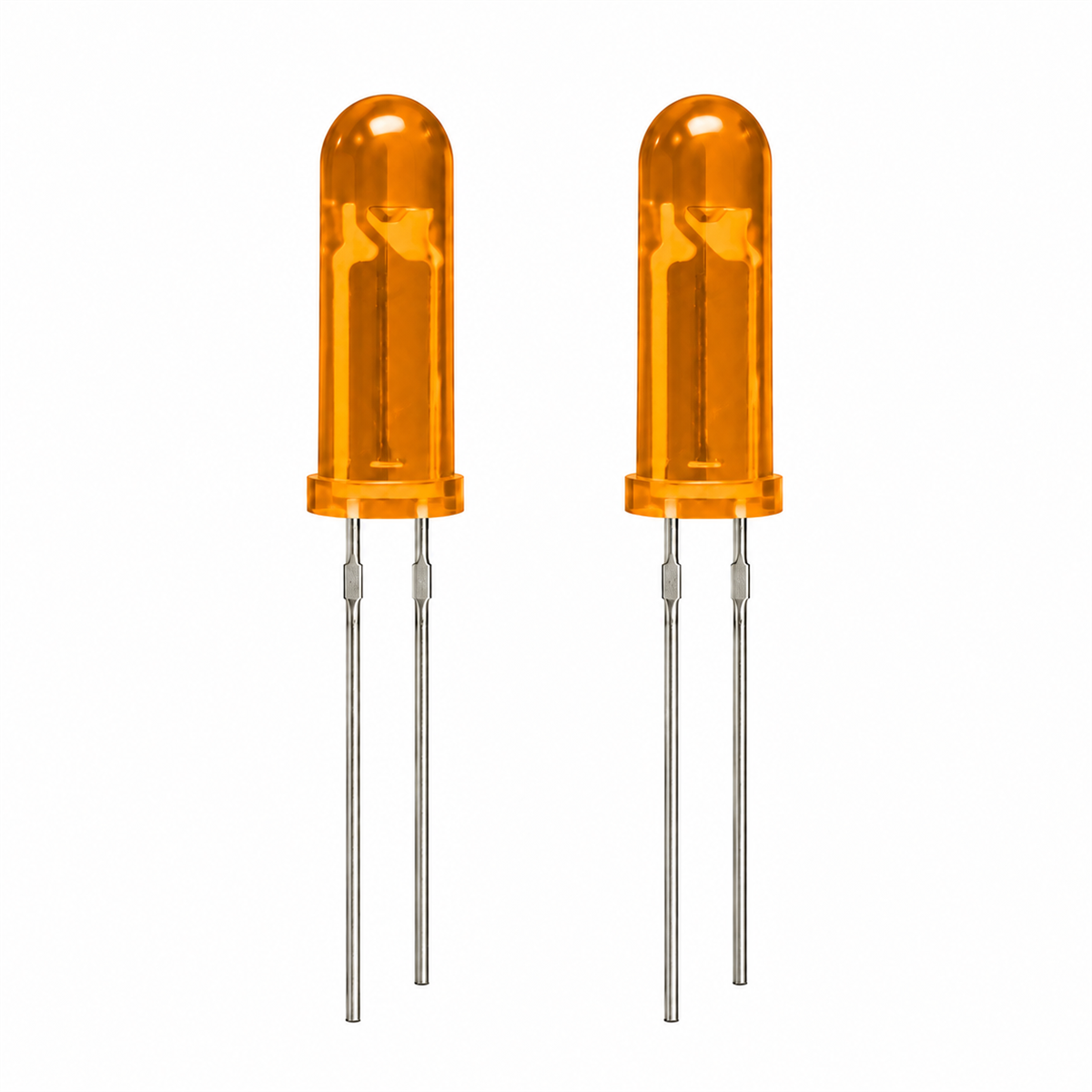

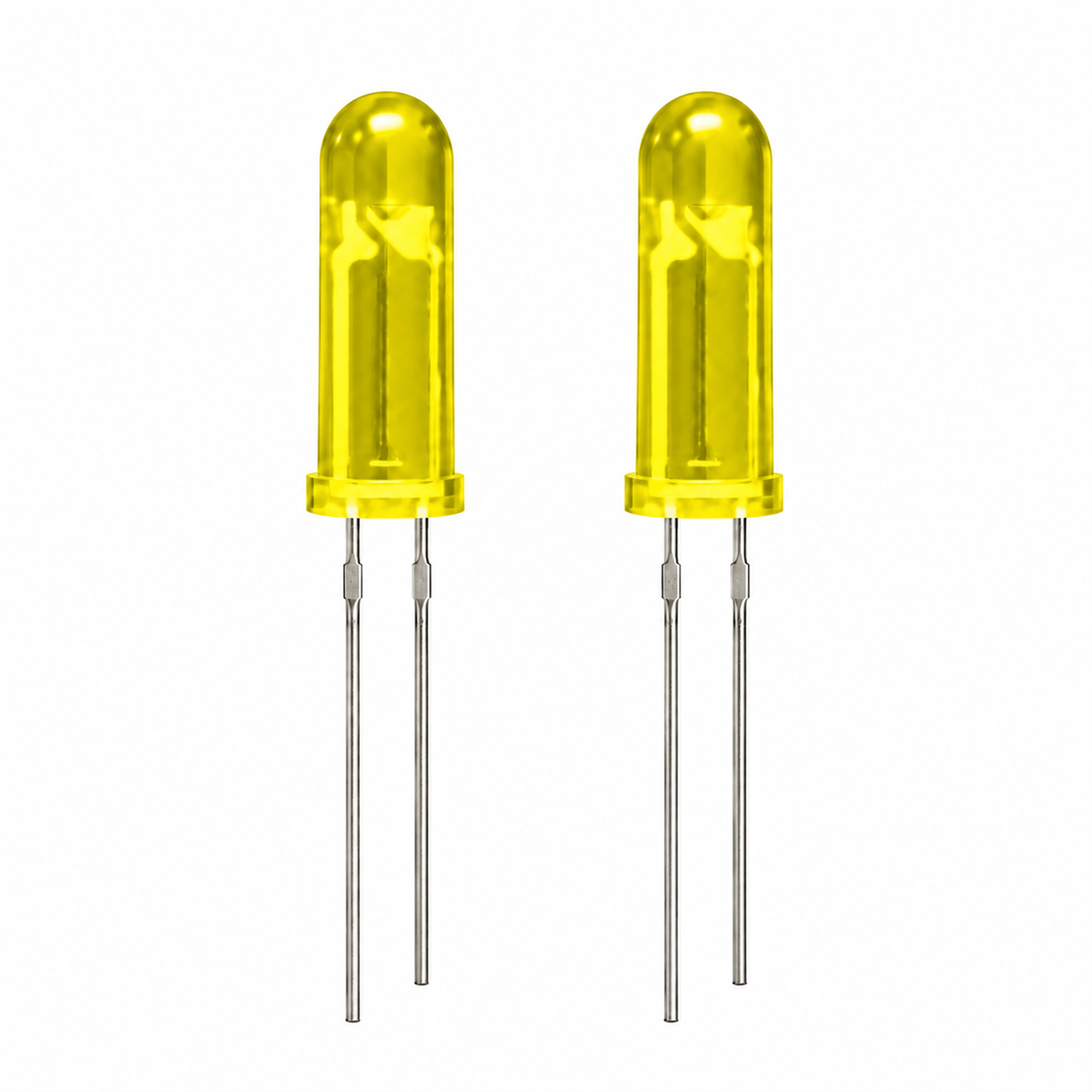

- Available in red, yellow, green, blue, white and orange
- Clear, diffused and colored lenses available
- Custom brightness, wavelength, voltage and lead length available
Applications:
- Indicators for instruments, meters and industrial equipment
- Appliance panel, control panel and switch indicators
- Equipment panels and exposed status indicators
- Audio equipment, amplifiers and electronic products
- Communications equipment, security equipment and status indicators
Product Features:
Chip: Grade A chips from leading brands in Taiwan and mainland China provide stable brightness, good color consistency and strong ESD resistance.
Gold wire: 99.99% pure gold wire bonding provides good electrical conductivity and strong, reliable bonds.
Encapsulant: High-quality environmentally friendly resin with clear, diffused or colored lens options offers good heat resistance and resists yellowing.
Lead frame: High-quality metal lead frame with good electrical conductivity; custom lead lengths and forming options available.
Packaging: bulk, bagged and customer-specified packaging are available, with ESD and moisture protection.
Category: Through-Hole LED Series
Quick Reference: Key Optoelectronic Parameters (by Emission Color)
Test conditions: IF=20mA, ambient temperature 25℃. Ranges are Min~Max; Avg is the original table's average value. Data are taken from page 3 of the corresponding part number's datasheet.
| Emission Color | Part Number | Forward Voltage VF (V) | Wavelength / Color Temperature CCT | Luminous Intensity Iv (mcd) | Viewing Angle 2θ½ (°) | Test Current IF (mA) | Operating Temperature |
|---|---|---|---|---|---|---|---|
| Red | HC-54LH91R38BJC-AA-L | 1.8~2.4 | 620~630 nm | 300~800 | 15 | 20 | -20 ~ +80℃ |
The original datasheet lists an 'Experiment temperature range' of -20~+80℃ without separately specifying the rated operating temperature range; therefore, the experimental temperature is not directly substituted for operating temperature. The 620~630nm range is retained under λ as in the original parameter table; viewing angle 15° is an Avg value.
Related Products

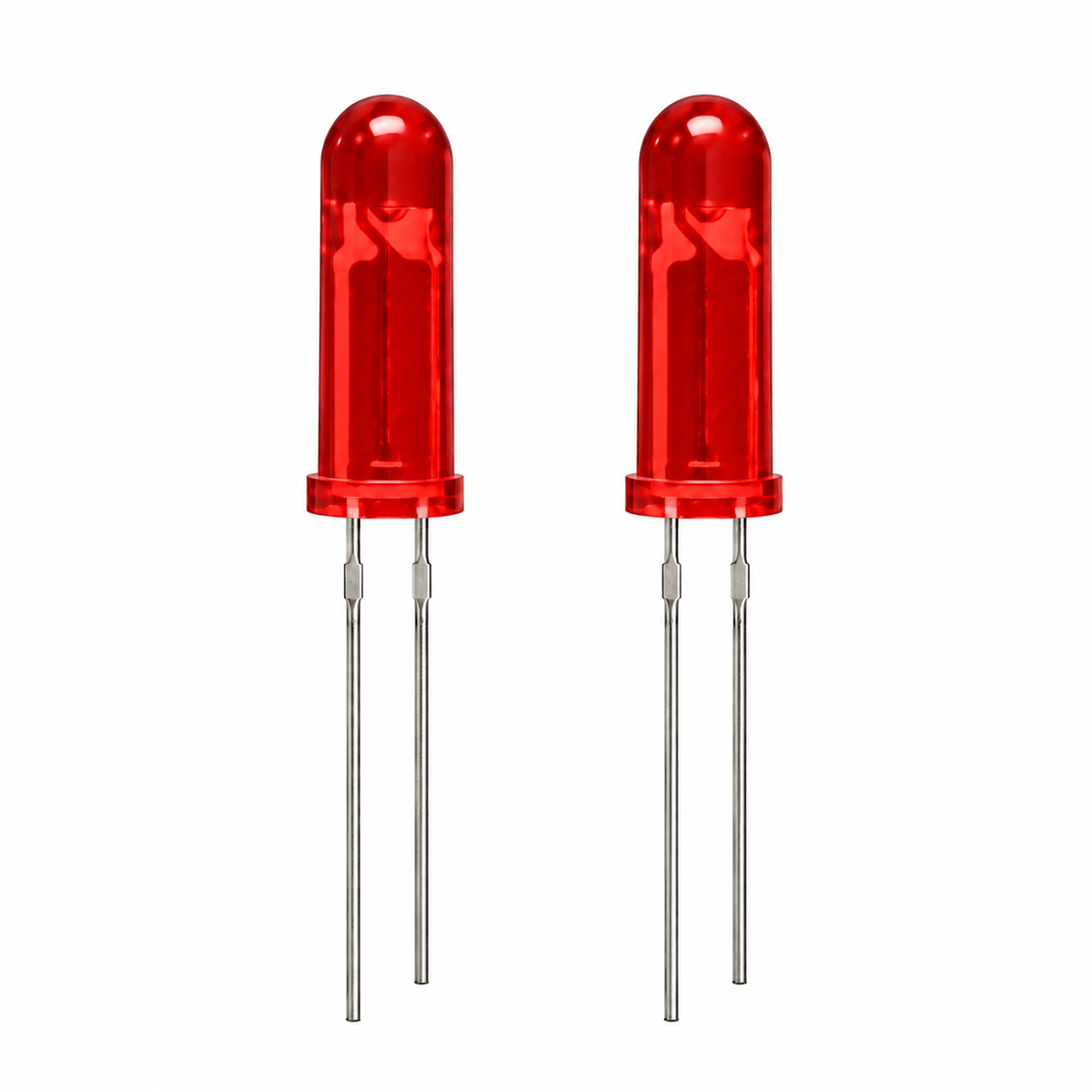

5mm Tall Lens Through-hole LEDs Uses a round-top flanged clear encapsulant with red emission. Body diameter is 5.0mm and height is 20.5±0.3mm (excluding leads); the two leads are 27±0.5mm long. At IF=20mA, forward voltage is 1.8~2.4V, luminous intensity is 300~800mcd and viewing angle is Avg 15°. Part number: HC-54LH91R38BJC-AA-L. Download the corresponding datasheet PDF on this page for complete electrical parameters and mounting dimensions.
Q: Can the lead length of through-hole LEDs be customized?
A: This model's datasheet specifies a lead length of 27±0.5mm and a body height of 20.5±0.3mm excluding leads. For other lead lengths or formed leads, provide mounting dimensions and requirements for manufacturer confirmation.
Product Specifications at a Glance
| Product Name | 5mm Tall Lens Through-hole LEDs |
|---|---|
| Package: | Through-hole package, round head with flanged clear lens |
| Dimensions | Φ5mm |
| Mounting: | DIP Through-hole |
| Emission Color | Red |
| Environmental Certification | RoHS |
| Manufacturer | Dongguan Hongcheng Optoelectronics Co., Ltd. |
| Customization: | Custom emission color, brightness, wavelength, encapsulant and lead length available |
| Detailed Specifications | See the datasheet PDF on this page for complete electrical parameters |
| Minimum Order Quantity (MOQ) | 1K（1,000 pcs） |
| Sample Lead Time | Typically 3-4 working days |
| Volume Production Lead Time | Typically 10-15 working days |
💡 Typical Applications: Panel indication requiring a tall encapsulated body, instrument and industrial equipment status indication, and electronic indicator structures requiring a specific mounting height.
Forward Voltage and Wavelength Quick Reference by Color
Voltage varies significantly between colors in the same package. Select current-limiting resistors using the values for the specific color:
| Emission Color | Wavelength Range | Forward Voltage | Chip Material |
|---|---|---|---|
| Red | 620~625nm | 1.8~2.4V | AlGaInP |
| Yellow | 585~595nm | 1.8~2.4V | AlGaInP |
| Orange | 600~610nm | 1.8~2.4V | AlGaInP |
| Standard Green | 565~575nm | 1.8~2.4V | AlGaInP |
| Emerald Green | 520~530nm | 2.8~3.4V | InGaN |
| Blue | 450~470nm | 2.8~3.4V | InGaN |
| White (Neutral White) | Full Spectrum | 3.0~3.4V | InGaN + phosphor |
Ordering and Inquiry Information
Minimum order quantity: 1K (1,000 pcs); sample lead time is generally 3-4 working days, and volume production lead time is generally 10-15 working days (subject to order confirmation). For volume pricing, use the inquiry form on this page or call/message us on WeChat at 139 2571 4318. Specify the exact model and quantity in your inquiry.
Selection Recommendations
Before installation, separately check body height, lead length and hole spacing. A clear encapsulant does not mean white emission. Wire according to the confirmed pinout for the corresponding part number; do not rely solely on lead length for polarity. The datasheet recommends constant-current drive. Lead soldering conditions are 260℃ for 5 seconds at 4.0mm from the lead root. Follow the datasheet's current and soldering process requirements.
