5mm Extended-Lead Through-Hole LED
5mm Long-Lead Through-Hole LED - Hongcheng Optoelectronics LED Manufacturer
Product Overview:
The 5mm extended-lead through-hole LED is a light-emitting diode with a 5mm encapsulant package and two extended leads. It provides a clearly defined emitting area, uniform light and convenient insertion and soldering. Suitable for electronic equipment indicators, instruments, meters, appliance panels and status indication. Emission color, brightness, wavelength, lens color and lead length can be customized to customer requirements.
Key Advantages:
- 5mm encapsulant package with extended leads
- Extended dual leads facilitate insertion and soldering
- Clearly defined emitting area with soft, uniform light

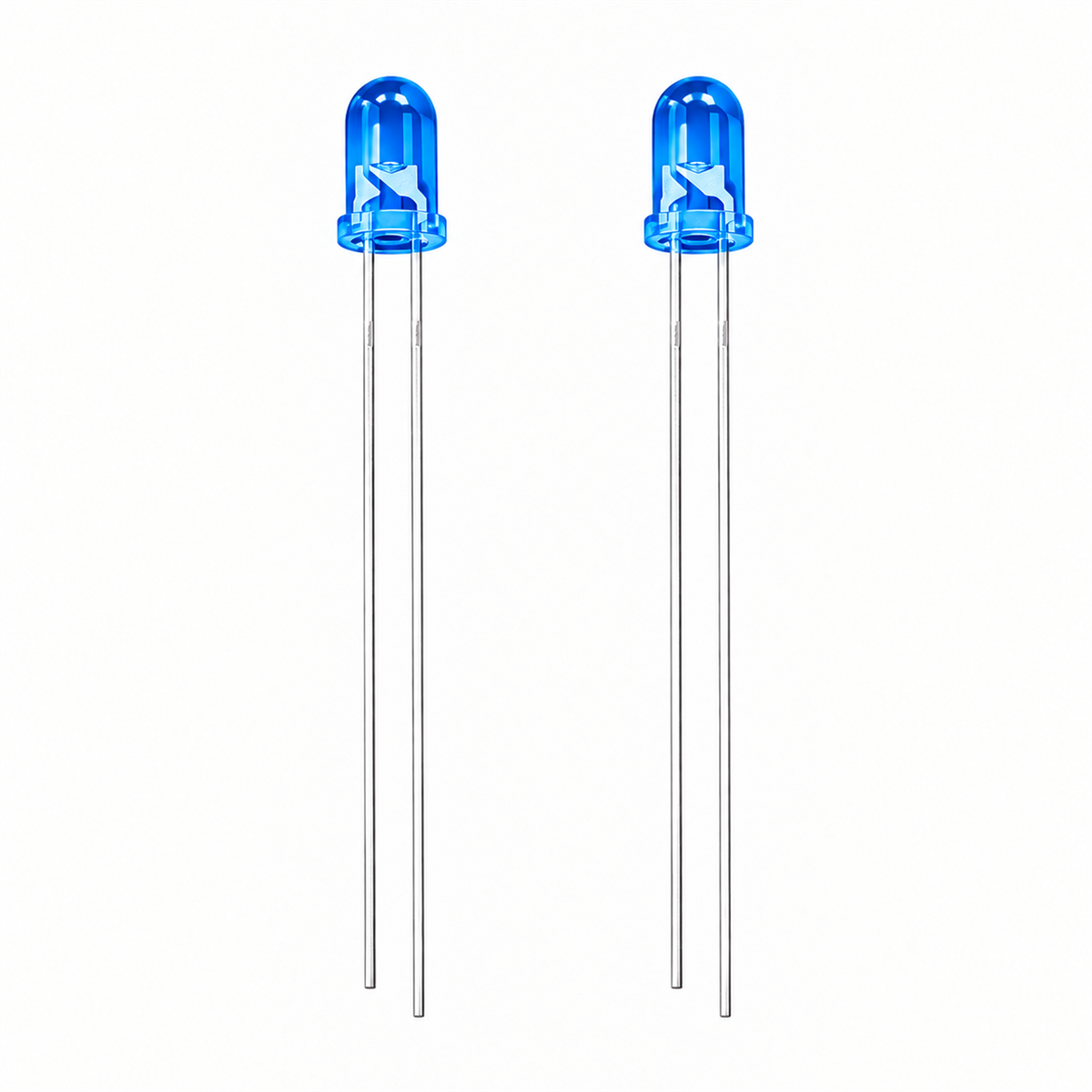

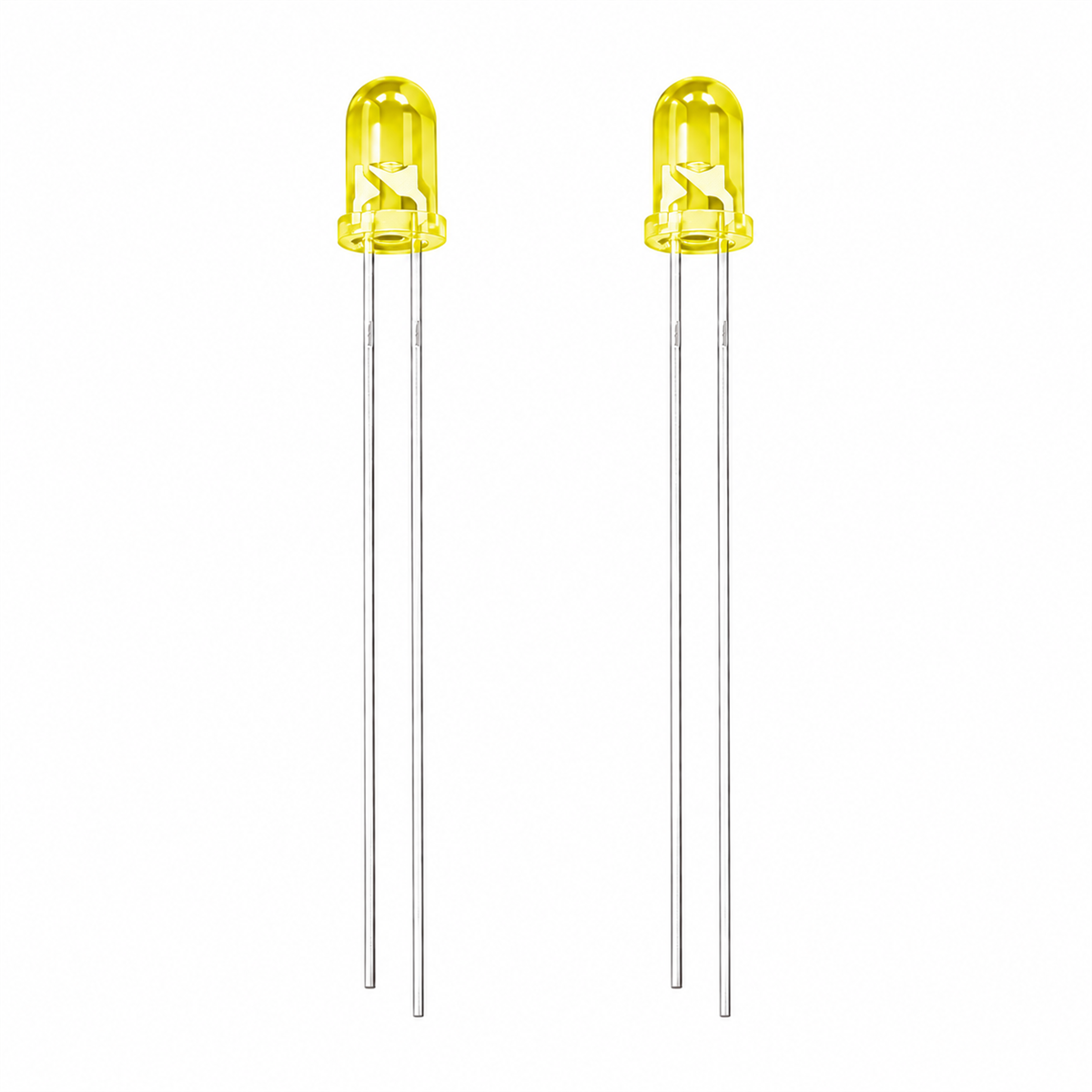

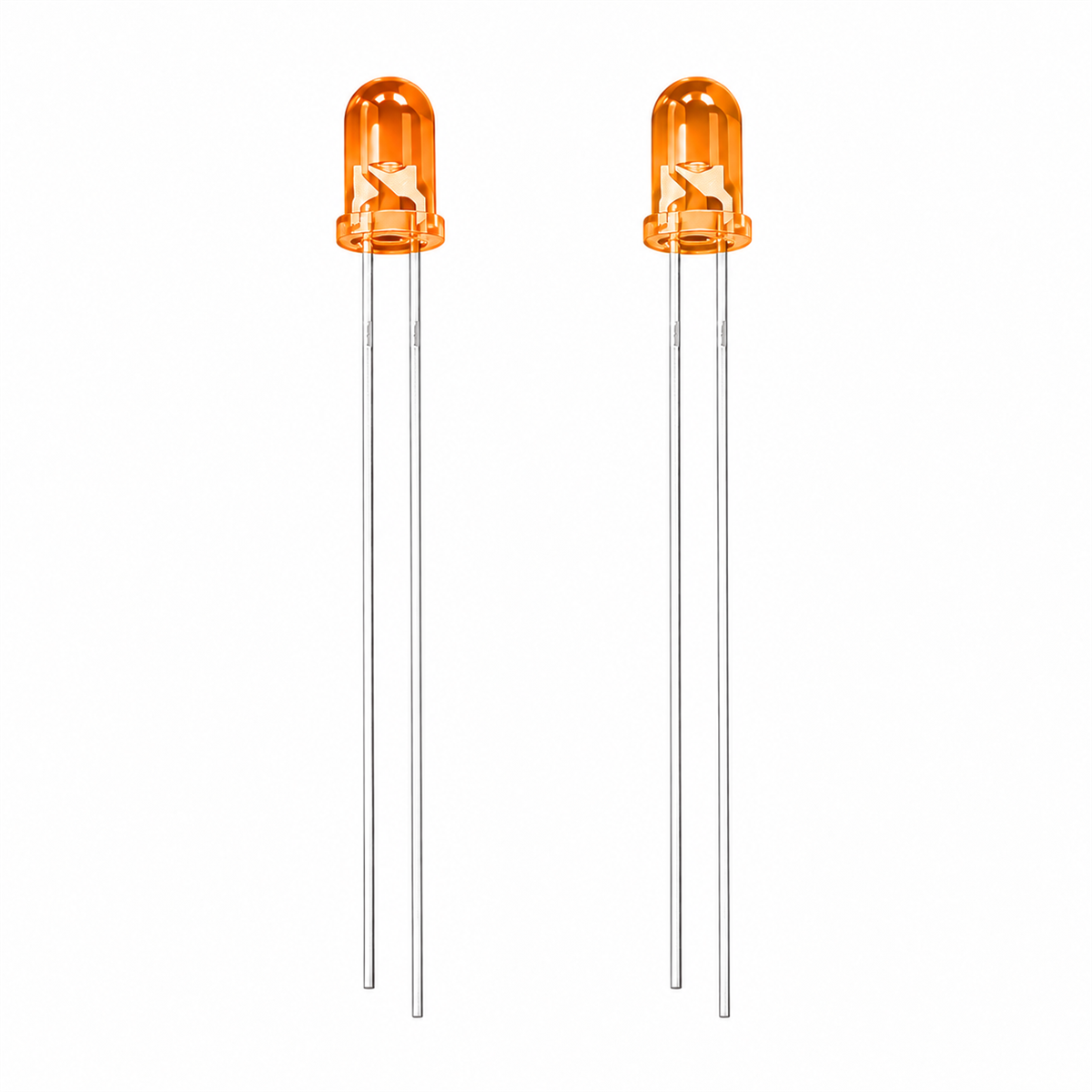

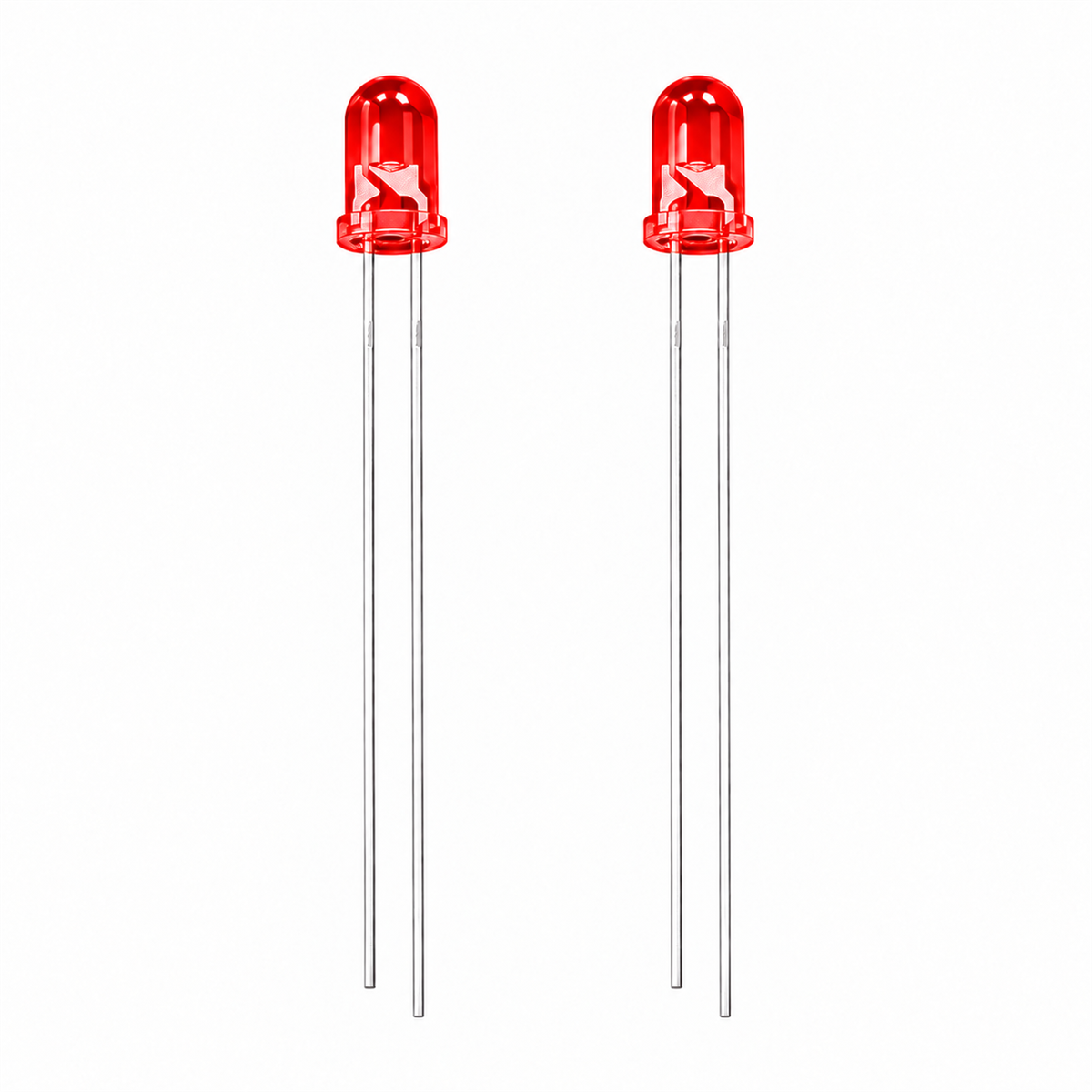

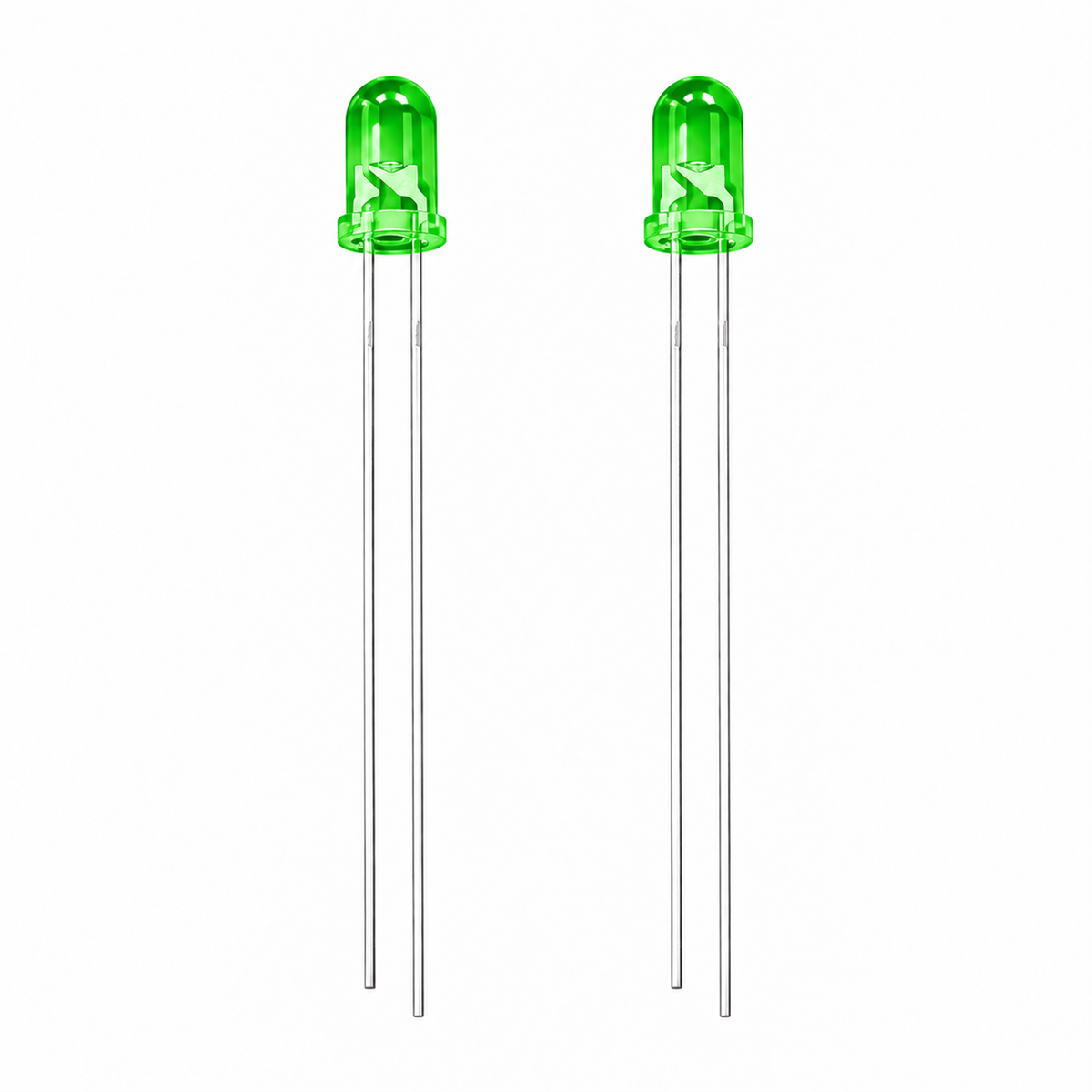

- Available in red, yellow, green, blue, white and orange
- Clear, diffused and colored lenses available
- Custom brightness, wavelength, voltage and lead length available
Applications:
- Indicators for instruments, meters and industrial equipment
- Appliance panel, control panel and switch indicators
- Audio equipment, amplifiers and electronic products
- Numeric displays, bar displays and backlight modules
- Communications equipment, security equipment and status indicators
Product Features:
Chip: Grade A chips from leading brands in Taiwan and mainland China provide stable brightness, good color consistency and strong ESD resistance.
Gold wire: 99.99% pure gold wire bonding provides good electrical conductivity and strong, reliable bonds.
Encapsulant: High-quality environmentally friendly resin with clear, diffused or colored lens options offers good heat resistance and resists yellowing.
Lead frame: High-quality metal lead frame with good electrical conductivity; custom lead lengths and forming options available.
Packaging: bulk, bagged and customer-specified packaging are available, with ESD and moisture protection.
Category: Through-Hole LED Series
Quick Reference: Key Optoelectronic Parameters (by Emission Color)
Test conditions: IF=20mA. Values are datasheet Min~Max; Typ denotes typical values. The red and green channels of the dual-color version are matched by the wavelengths listed on the two pages. See the notes below the table.
| Emission Color | Part Number | Forward Voltage VF (V) | Wavelength λp / Color Temperature CCT | Luminous Intensity Iv (mcd) | Viewing Angle 2θ½ (°) | Test Current IF (mA) | Operating Temperature |
|---|---|---|---|---|---|---|---|
| Red | HC-SS-5A3RC-B | 1.9~2.3 | 620~630 nm | 800~1200 | 25 | 20 | -20~+80℃ |
| Red | HC-SS-5G9RGC/C | 1.9~2.4 | 620~630 nm | 600~800 | 30 | 20 | -20~+80℃ |
| Green | 2.8~3.2 | 520~525 nm | 800~1200 | 30 | 20 | -20~+80℃ |
Sources: single-color datasheet page 2; dual-color datasheet pages 2 and 3. The two dual-color pages do not explicitly name the colors; red and green are identified here from 620~630nm and 520~525nm respectively. Text on pages 1 and 4 of the dual-color datasheet states common cathode, but the center lead on page 4 is labeled ANODE. Verify the manufacturer-confirmed pin diagram before wiring.
5mm Extended-Lead Through-Hole LEDs Uses a round-top clear encapsulant, with red single-color and red/green dual-color models. Red single-color HC-SS-5A3RC-B has two leads with a length of 53mm; red/green dual-color HC-SS-5G9RGC/C has three leads with a length of 42mm. Manufactured by Dongguan Hongcheng Optoelectronics Co., Ltd., for panels and indicator structures requiring extended leads. Download the relevant part number's datasheet PDF on this page for complete electrical parameters, mounting dimensions and pin definitions.
Q: Can the lead length of through-hole LEDs be customized?
A: The red single-color model on this page has 53mm leads; the red/green dual-color model has 42mm leads. For other lead lengths or bent-lead forming requirements, provide mounting dimensions and requirements for manufacturer confirmation.
Product Specifications at a Glance
| Product Name | 5mm Extended-Lead Through-Hole LEDs |
|---|---|
| Package: | Through-Hole Package |
| Dimensions | Φ5mm; red single-color lead length 53mm, red/green dual-color lead length 42mm |
| Mounting: | DIP Through-hole |
| Emission Color | Red single-color or red/green dual-color (select by part number) |
| Environmental Certification | RoHS |
| Manufacturer | Dongguan Hongcheng Optoelectronics Co., Ltd. |
| Customization: | Custom emission color, brightness, wavelength, encapsulant and lead length available |
| Detailed Specifications | See the datasheet PDF on this page for complete electrical parameters |
| Minimum Order Quantity (MOQ) | 1K（1,000 pcs） |
| Sample Lead Time | Typically 3-4 working days |
| Volume Production Lead Time | Typically 10-15 working days |
💡 Typical Applications: Control panels, instruments and equipment status indicators requiring extended leads; verify actual lead length, hole positions and lead-bending requirements during assembly.
Forward Voltage and Wavelength Quick Reference by Color
Voltage varies significantly between colors in the same package. Select current-limiting resistors using the values for the specific color:
| Emission Color | Wavelength Range | Forward Voltage | Chip Material |
|---|---|---|---|
| Red | 620~625nm | 1.8~2.4V | AlGaInP |
| Yellow | 585~595nm | 1.8~2.4V | AlGaInP |
| Orange | 600~610nm | 1.8~2.4V | AlGaInP |
| Standard Green | 565~575nm | 1.8~2.4V | AlGaInP |
| Emerald Green | 520~530nm | 2.8~3.4V | InGaN |
| Blue | 450~470nm | 2.8~3.4V | InGaN |
| White (Neutral White) | Full Spectrum | 3.0~3.4V | InGaN + phosphor |
Ordering and Inquiry Information
Minimum order quantity: 1K (1,000 pcs); sample lead time is generally 3-4 working days, and volume production lead time is generally 10-15 working days (subject to order confirmation). For volume pricing, use the inquiry form on this page or call/message us on WeChat at 139 2571 4318. Specify the exact model and quantity in your inquiry.
Selection Recommendations
Check lead length, lead count and hole positions against the complete part number: single-color has two 53mm leads, while dual-color has three 42mm leads. Page 3 of the single-color datasheet labels 1 as anode and 2 as cathode. Pages 1 and 4 of the dual-color datasheet describe a common cathode, but the center lead on page 4 is labeled ANODE. The manufacturer must resolve this conflict before wiring; lead length must not replace a polarity diagram. Both datasheets specify a lead soldering limit of 260℃ for 5 seconds, with solder joints at least 3mm from the bottom of the encapsulant. Complete lead forming before soldering.
Related Reading: LED Indicator Part Number Comparison Table (Complete 2026 Edition) ｜ Datasheet Download Center
Note: specifications on this page were compiled against product documentation on 2026-09-27. Items missing from or conflicting between datasheets are not assigned a common value. Refer to the confirmed datasheet for the corresponding model.
