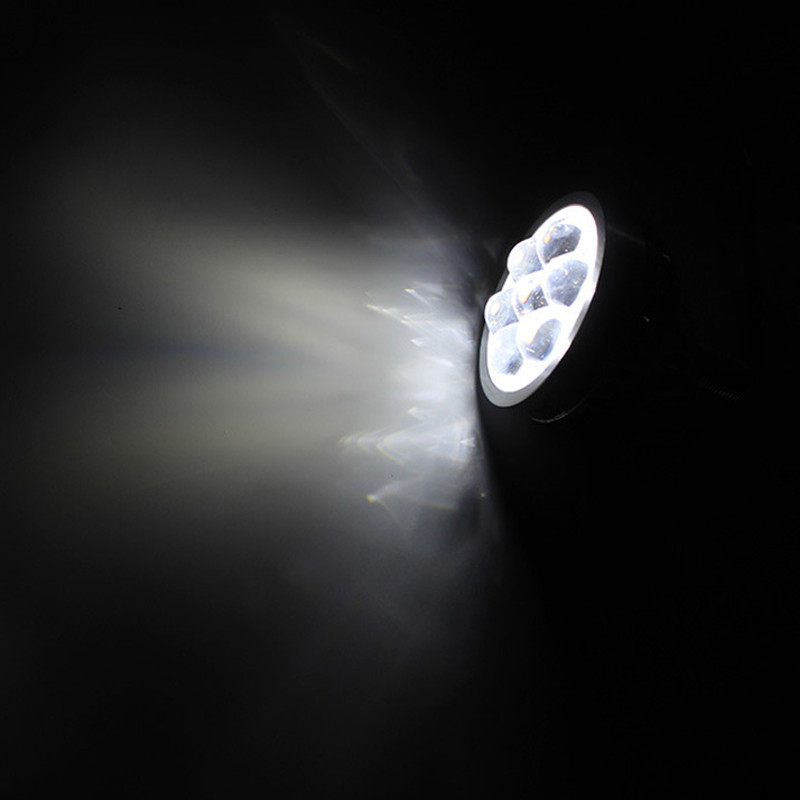

LED High Beam Cannon Headlight (Gen 1), High Power Driving Light
First generation high beam cannon - Hongcheng Optoelectronics LED Manufacturer
Categories: Automotive LED Lights Series
First generation high beam cannon - Hongcheng Optoelectronics LED Manufacturer
LED High Beam Cannon Headlight (Gen 1), High Power Driving Light is a 1W/3W high-power through-hole LED (Luxeon-style package), 350mA/700mA constant-current drive with aluminum PCB heatsinking, for spot lights, flashlights and task lighting. It is manufactured by Dongguan Hongcheng Optoelectronics Co., Ltd. (Guangyu Group, 20+ years in LED packaging) with A-grade chips and 99.99% pure gold wire bonding, RoHS certified, factory-direct supply, with free samples and CCT, power and lens-angle customization supported; full electrical specifications and dimensions are available in the datasheet PDF on this page.
Quick Specifications
| Product Name | LED High Beam Cannon Headlight (Gen 1), High Power Driving Light |
| Package Type | Through-hole |
| Dimensions | See datasheet |
| Mounting | Through-hole |

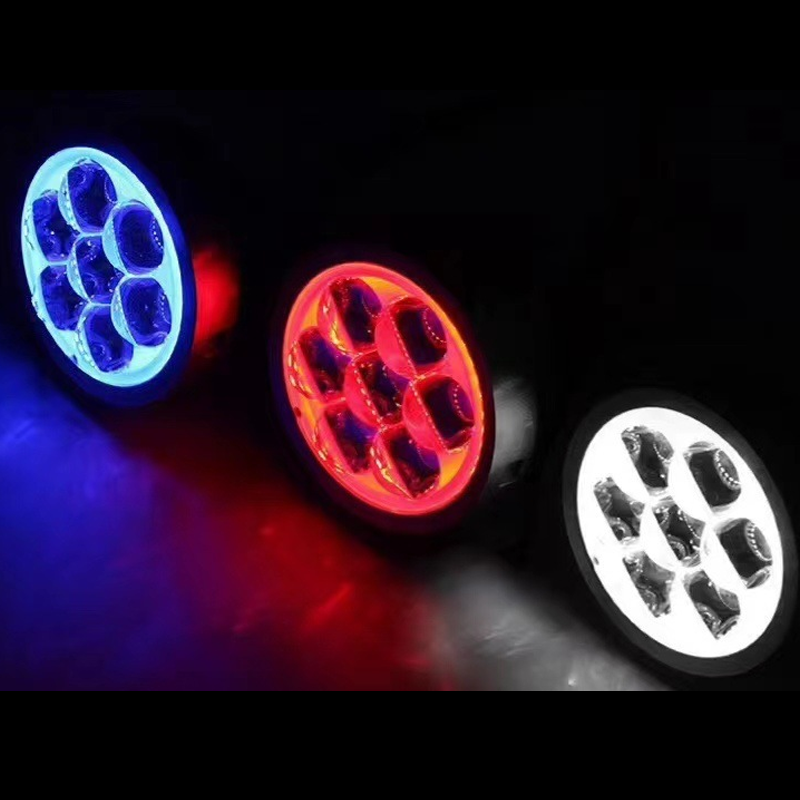

| Emitting Colors | Red / Yellow / Green / Blue / White / Orange, customizable |
| Chip Grade | A-grade |
| Bonding Wire | 99.99% pure gold wire |
| Environmental Certification | RoHS |
| Manufacturer | Dongguan Hongcheng Optoelectronics Co., Ltd. |
| Detailed Parameters | Full electrical parameters are available in the datasheet PDF on this page |
Specifications at a Glance
| Product Name | First generation high beam cannon |
| Package | Standard package |
| Dimensions | See datasheet |
| Mounting | Through-hole |
| Emitting Color | Infrared |
| Chip Grade | Grade-A chips |
| Wire Bonding | 99.99% pure gold wire |
| Certification | RoHS |
| Manufacturer | Dongguan Hongcheng Photoelectric Co., Ltd. |
| Customization | Color, brightness, wavelength, lens and pin length customizable |
| Full Specifications | See the datasheet PDF on this page for complete electrical parameters |
💡 Typical applications: This is a finished lighting product for automotive lighting, commercial projection, signage and landscape illumination. Custom wattage, patterns, housing and OEM/ODM services available.
Q: Do high-power LEDs need heatsinking?
A: 1W and above should be mounted on an aluminum PCB or heatsink with junction temperature kept under 85°C. We provide thermal design guidance.
Forward Voltage & Wavelength by Color
Forward voltage differs greatly by color in the same package - always size the current-limiting resistor per color:
| Emitting Color | Wavelength | Forward Voltage | Chip Material |
|---|---|---|---|
| Red | 620~625nm | 1.8~2.4V | AlGaInP |
| Yellow | 585~595nm | 1.8~2.4V | AlGaInP |
| Orange | 600~610nm | 1.8~2.4V | AlGaInP |
| Yellow-Green | 565~575nm | 1.8~2.4V | AlGaInP |
| Pure Green | 520~530nm | 2.8~3.4V | InGaN |
| Blue | 450~470nm | 2.8~3.4V | InGaN |
| White (Neutral) | Full spectrum | 3.0~3.4V | InGaN + phosphor |
