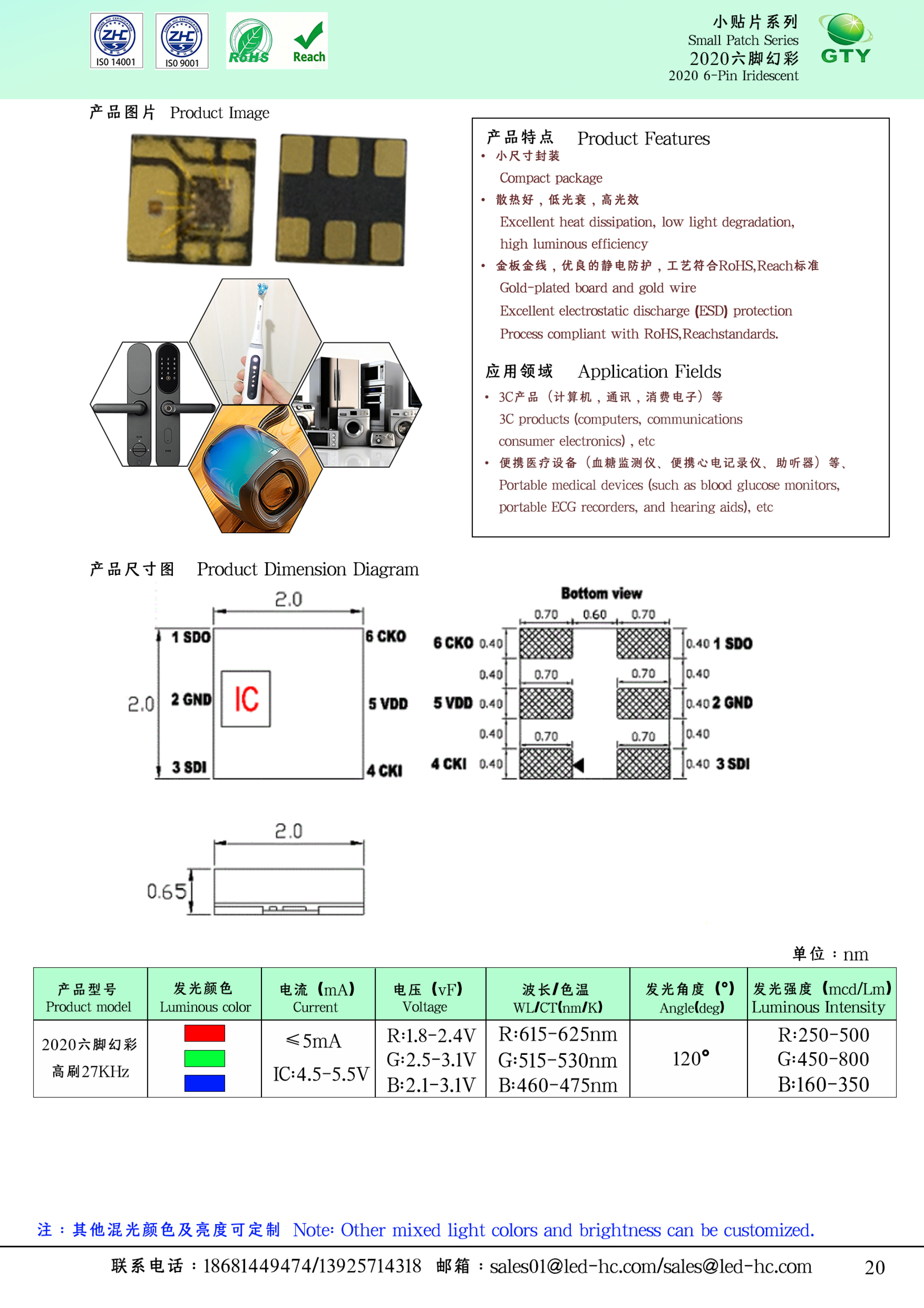

Product Overview:
The 2020 addressable SMD LED uses an approximately 2.0×2.0mm package integrating RGB chips and a control circuit. Each LED can be addressed independently for full-color display, fades, chasing, breathing and other dynamic effects. It features small size, rich colors, uniform brightness and fast response, suitable for high-density PCBs and miniaturized electronics.
Key Advantages:
- Compact 2020 package saves PCB mounting space
- Independent RGB channel control for full-color displays
- Built-in control IC simplifies peripheral circuitry
- Supports cascading and various dynamic lighting effects
- Uniform color mixing and refined display performance
- Suitable for automated placement and lead-free reflow soldering
Applications:
- Smart wearable devices and digital products
- Mobile phones, earphones and small electronic equipment
- Smart home and Internet of Things devices
- Small displays, status indication and backlight modules
- LED strips, decorative lighting and ambient lights
- Automotive interior lighting and instrument indication
- Stage lighting and advertising display equipment
Product Features:
Chips: high-quality RGB chips provide balanced brightness across the three primary colors and good color reproduction.
Control: digital signal control supports individual LED addressing, cascading and programmable dynamic lighting effects.
Package: high-transmission encapsulation material provides good heat, moisture and aging resistance.
Soldering: supports automated placement and lead-free reflow soldering for volume production.
Packaging: tape-and-reel packaging available for high-speed placement machines and automated production lines.
Category: 2020 Six-Pin Addressable RGB
Quick Reference: Key Optoelectronic Parameters (by Emission Color)
Test conditions: See the IF column for test current; ambient temperature 25℃. Data is taken from each model's datasheet. “—” indicates that the datasheet does not specify this item. Download the corresponding PDF for complete specifications.
| Emission Color | Part Number | Forward Voltage VF (V) | Wavelength / Color Temperature CCT | Luminous Intensity Iv (mcd) | Viewing Angle 2θ½ (°) | Test Current IF (mA) | Operating Temperature |
|---|---|---|---|---|---|---|---|
| Red | HC-S2020RGB-9822B-1 | 1.8~2.4 | 620~625 nm | 250~500 | — | 12 | -40~+80℃ |
| Pure Green | 2.8~3.4 | 520~530 nm | 450~800 | — | 12 | -40~+80℃ | |
| Blue | 2.8~3.4 | 460~470 nm | 160~350 | — | 12 | -40~+80℃ |
Related Products
2020 6-pin Addressable SMD LEDs A 5V addressable SMD LED with an integrated driver IC (compatible with WS2812/SK6812 single-wire serial protocols). Each LED supports individually programmable full-color addressing and cascade control, for light strips, ambient lights and pixel matrices. Supplied directly by Dongguan Hongcheng Optoelectronics Co., Ltd. (an international member of Guangyu Group, with over 20 years of LED packaging experience). Uses A-grade chips and 99.99% pure gold wire bonding, with RoHS certification. Free samples and custom IC protocols, pin configurations and refresh rates are available. Download the datasheet PDF on this page for complete electrical specifications and mounting dimensions.
Q: What are the chromaticity BIN ranges for addressable LEDs?
A: The full-color series is shipped with brightness and color binning based on CIE chromaticity coordinates. Color difference within the same batch is Δu'v'≤0.003. Custom BIN ranges are available to meet customer color-gamut requirements.
Q: What placement-machine accuracy does this LED require?
A: This product uses a 2020 package (2.0×2.0mm) with relatively large pads. Ordinary high-speed placement machines meet its needs, with no special equipment accuracy requirements. Its built-in IC and multiple-pad structure require each stencil aperture to align with its corresponding pad. Visual inspection or AOI is recommended after placement to confirm solder quality. Supports lead-free reflow soldering (peak ≤260℃/≤3s).
Product Specifications at a Glance
| Product Name | 2020 6-pin Addressable SMD LEDs |
|---|---|
| Package: | SMD package (integrated IC) |
| Dimensions | 2.0×2.0mm (2020 package) |
| Mounting: | SMD surface mounting (suitable for reflow soldering) |
| Emission Color | RGB full color (integrated IC, programmable addressable effects) |
| Environmental Certification | RoHS |
| Packaging Quantity | Tape-and-reel packaging (quantity per reel is specified in the corresponding datasheet) |
| Manufacturer | Dongguan Hongcheng Optoelectronics Co., Ltd. |
| Customization: | Custom colors, brightness and wavelength binning, and encapsulants available; confirm details when requesting a quote |
| Detailed Specifications | See the datasheet PDF on this page for complete electrical parameters |
| Minimum Order Quantity (MOQ) | 1 reel (orders start at one full taped reel; see the corresponding datasheet for quantity per reel) |
| Sample Lead Time | Typically 3-4 working days |
| Volume Production Lead Time | Typically 10-15 working days |
💡 Typical Applications: Common applications include smart wearables and digital products, phones, earphones and small electronic devices, smart home and IoT devices, small displays, status indication and backlight modules.
Forward Voltage and Wavelength Quick Reference by Color
Voltage varies significantly between colors in the same package. Select current-limiting resistors using the values for the specific color:
| Emission Color | Wavelength Range | Forward Voltage | Chip Material |
|---|---|---|---|
| Red | 620~630nm | 1.8~2.4V | GaASP/GaP |
| Yellow | 585~595nm | 1.8~2.4V | AlGaInP |
| Orange | 600~610nm | 1.8~2.4V | AlGaInP |
| Standard Green | 565~575nm | 1.8~2.4V | AlGaInP |
| Emerald Green | 510~520nm | 2.6~3.2V | InGaN |
| Blue | 450~470nm | 2.8~3.4V | InGaN |
| White | CCT 15000~25000K | 2.8~3.4V | InGaN + phosphor |
Ordering and Inquiry Information
SMD models use tape-and-reel packaging (quantity per reel is subject to the corresponding datasheet), with minimum orders in full reels. Sample lead time is typically 3-4 working days; volume production lead time is typically 10-15 working days (subject to order confirmation). For volume pricing, use the inquiry link on this page or phone/WeChat 139 2571 4318. Specify the exact part number and quantity.
Selection Recommendations
Forward voltage varies considerably by color/model (commonly 1.8~3.4V). Calculate current-limiting resistors using the VF range in the selected model's datasheet, and set the reflow profile according to the corresponding datasheet.
Related Reading: LED Indicator Part Number Comparison Table (Complete 2026 Edition) ｜ Datasheet Download Center
Note: The parameters on this page were compiled against product documentation on 2026-09-17. Items not provided in a datasheet are not assigned uniform values. Refer to the datasheet for the relevant part number.
