1515 Addressable RGB SMD LED
1515 Addressable SMD LEDs - Hongcheng Optoelectronics LED Manufacturer
Product Overview:
The 1515 addressable RGB SMD LED uses an ultra-small package approximately 1.5×1.5mm, integrating RGB tri-color LED chips and control circuitry. Single-wire or dual-wire signals enable individual addressing and various dynamic effects. It features small size, rich colors, uniform brightness and fast response, making it suitable for high-density, flexible and miniaturized electronic products.
Key Advantages:
- Miniature 1515 package saves PCB mounting space
- Independent RGB channel control for full-color displays
- Built-in control IC reduces peripheral components
- Supports cascading and programming various lighting effects
- Uniform color mixing for fine display quality
- Supports automated placement and reflow soldering
Applications:
- Smart wearables and small electronic products
- Phones, earphones and digital products
- Smart home and Internet of Things devices
- Small displays, indicators and backlight modules
- Stage lighting, decorative lighting and ambient lights
- Automotive interior and instrument indicators
- LED strips and portable luminaires
Product Features:
Chips: high-quality RGB chips provide balanced brightness across the three primary colors and rich color reproduction.
Control: Digital signal control enables individual addressing, cascading and dynamic lighting effects.
Package: high-transmission encapsulation material provides good heat, moisture and aging resistance.
Soldering: Suitable for automated placement and lead-free reflow soldering for high production efficiency.
Packaging: tape-and-reel packaging available for high-speed placement machines and automated production lines.
Category: 1515 Addressable RGB
Quick Reference: Key Optoelectronic Parameters (by Emission Color)
Data are based on pages 2–5 of this part number's datasheet. The original datasheet does not list optical parameters by color. Confirmed supply, drive and control parameters are listed separately below. VDD is the chip supply voltage and IRGB is the output drive current; these are not equivalent to LED forward voltage VF and optical test current IF, respectively.
| Emission Color | Part Number | Forward Voltage VF(V) | Wavelength / Color Temperature CCT | Luminous Intensity Iv (mcd) | Viewing Angle 2θ1/2 (°) | Test Current IF (mA) | Operating Temperature |
|---|---|---|---|---|---|---|---|
| Red | HC-IC4X-C1515RGB8CGG | Not specified in the datasheet | Not specified in the datasheet | Not specified in the datasheet | Not specified in the datasheet | Not specified in the datasheet | -30～85 ℃ |
| Green | Not specified in the datasheet | Not specified in the datasheet | Not specified in the datasheet | Not specified in the datasheet | Not specified in the datasheet | -30～85 ℃ | |
| Blue | Not specified in the datasheet | Not specified in the datasheet | Not specified in the datasheet | Not specified in the datasheet | Not specified in the datasheet | -30～85 ℃ |
Power Supply, Drive and Control Specifications
| Item | Specifications | Conditions / Datasheet Reference |
|---|---|---|
| Recommended Supply Voltage VDD | 3.5 / 5.0 / 5.5 V | Minimum / Typical / Maximum; Ta=25℃, recommended operating conditions on page 3 |
| RGB Output Drive Current IRGB | Typical 5 mA | Ta=25℃; page 4, not the optical test current |
| PWM Frequency | 4 kHz | Page 4 |
| Quiescent Current Idd | Typical 0.5 mA | The original table on page 4 labels this “quiescent power consumption”, with units of mA |
| Data Transmission Rate FDIN | Typical 800 kHz; Maximum 1100 kHz | Ta=25℃; page 5 |
| Propagation Delay tPLZ | Maximum 500 ns | Page 5 |
| Reset Low-level Time Trst | ≥80 μs | Page 5 |
| Operating Temperature Topt | -30 ~ +85℃ | Page 3 |

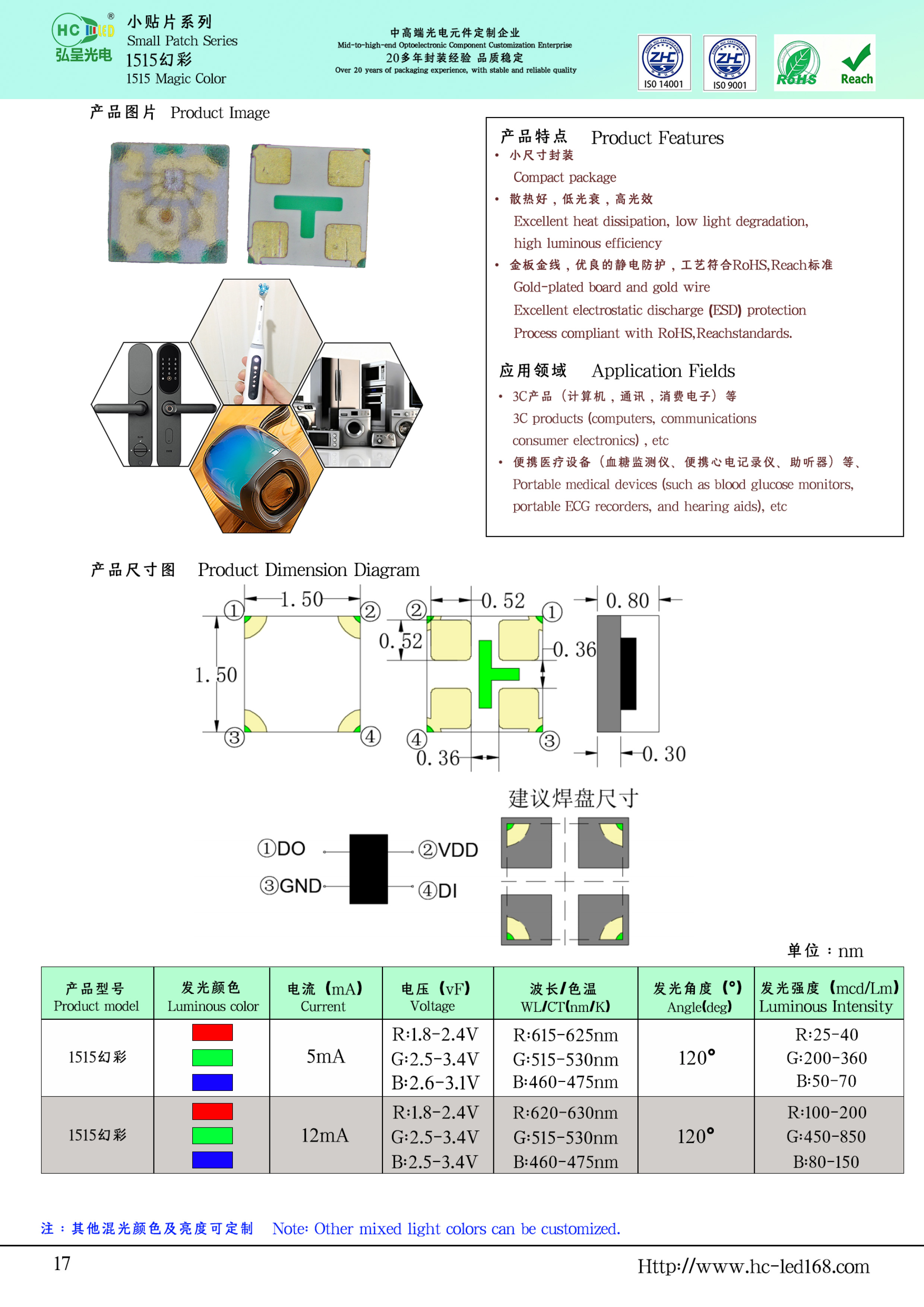

| Outline Dimensions L×W×H | 1.5 × 1.5 × 0.8 mm | Page 2 |
| Pin Definitions | 1 DO；2 VDD；3 GND；4 DI | Front-view pin diagram on page 2 |
1515 Addressable RGB SMD LED A 5V addressable SMD LED with an integrated driver IC (compatible with WS2812/SK6812 single-wire serial protocols). Each LED supports individually programmable full-color addressing and cascade control, for light strips, ambient lights and pixel matrices. Supplied directly by Dongguan Hongcheng Optoelectronics Co., Ltd. (an international member of Guangyu Group, with over 20 years of LED packaging experience). Uses A-grade chips and 99.99% pure gold wire bonding, with RoHS certification. Free samples and custom IC protocols, pin configurations and refresh rates are available. Download the datasheet PDF on this page for complete electrical specifications and mounting dimensions.
Q: What are the chromaticity BIN ranges for addressable LEDs?
A: The full-color series is shipped with brightness and color binning based on CIE chromaticity coordinates. Color difference within the same batch is Δu'v'≤0.003. Custom BIN ranges are available to meet customer color-gamut requirements.
Q: What placement-machine accuracy does this LED require?
A: This 1515 package (1.5×1.5mm) can be reliably placed using a standard high-speed placement machine (±0.1mm class). It has an integrated IC and multiple pads. Stencil apertures must align individually with the pads; visual inspection or AOI after placement is recommended to verify solder-joint quality. Lead-free reflow soldering is supported (peak ≤260℃/≤3s).
Product Specifications at a Glance
| Product Name | 1515 Addressable RGB SMD LED |
|---|---|
| Package: | SMD package (integrated IC) |
| Dimensions | 1.5×1.5mm (1515 package) |
| Mounting: | SMD surface mounting (suitable for reflow soldering) |
| Emission Color | RGB full color (integrated IC, programmable addressable effects) |
| Environmental Certification | RoHS |
| Packaging Quantity | 3,000 pcs/Reel (Tape and Reel) |
| Manufacturer | Dongguan Hongcheng Optoelectronics Co., Ltd. |
| Customization: | Custom colors, brightness and wavelength binning, and encapsulants available; confirm details when requesting a quote |
| Detailed Specifications | See the datasheet PDF on this page for complete electrical parameters |
| Minimum Order Quantity (MOQ) | 3K (3,000 pcs, 1 taped reel) |
| Sample Lead Time | Typically 3-4 working days |
| Volume Production Lead Time | Typically 10-15 working days |
💡 Typical Applications: Common applications include smart wearables and small electronic products; phones, earphones and digital products; smart home and Internet of Things devices; small displays, indicators and backlight modules.
Forward Voltage and Wavelength Quick Reference by Color
Voltage varies significantly between colors in the same package. Select current-limiting resistors using the values for the specific color:
| Emission Color | Wavelength Range | Forward Voltage | Chip Material |
|---|---|---|---|
| Red | 620~630nm | 1.8~2.4V | GaASP/GaP |
| Yellow | 585~595nm | 1.8~2.4V | AlGaInP |
| Orange | 600~610nm | 1.8~2.4V | AlGaInP |
| Standard Green | 565~575nm | 1.8~2.4V | AlGaInP |
| Emerald Green | 510~520nm | 2.6~3.2V | InGaN |
| Blue | 450~470nm | 2.8~3.4V | InGaN |
| White | CCT 15000~25000K | 2.8~3.4V | InGaN + phosphor |
Ordering and Inquiry Information
Packaging quantity refers to taped packaging (3,000 pcs per reel); minimum order quantity: 3K (3,000 pcs, orders start at one full taped reel). Sample lead time is generally 3-4 working days, and volume production lead time is generally 10-15 working days (subject to order confirmation). For volume pricing, use the inquiry form on this page or call/message us on WeChat at 139 2571 4318. Specify the exact model and quantity in your inquiry.
Selection Recommendations
Forward voltage varies considerably by color/model (commonly 1.8~3.4V). Calculate current-limiting resistors using the VF range in the selected model's datasheet, and set the reflow profile according to the corresponding datasheet.
Related Reading: LED Indicator Part Number Comparison Table (Complete 2026 Edition) ｜ Datasheet Download Center
Note: The parameters on this page were compiled against product documentation on 2026-09-17. Items not provided in a datasheet are not assigned uniform values. Refer to the datasheet for the relevant part number.
