3227 Bi-Color SMD LED
3227 Dual-color SMD LEDs - Hongcheng Optoelectronics LED Manufacturer
Product Overview
The 3227 SMD LED is a small-to-medium high-brightness LED light source, featuring high brightness, stable light output, good heat dissipation and easy installation.
Key Advantages
• Moderate size: The 3227 package suits electronic products and lighting structures with limited space
• Stable brightness: Uniform light and good color consistency for volume production applications
• Reliable soldering: supports SMD reflow soldering, with efficient installation for automated production
• Multiple colors: Custom red, yellow, blue, green, white, warm white, RGB and other emission colors available
• Batch consistency: Brightness, wavelength, voltage and other parameters can be binned to improve finished-product consistency
• Customization: Brightness, color, lead frame and packaging can be adjusted to customer requirements
Applications
• Electronic product indicators
• Instrument and meter display indicators
• Home appliance control panel backlighting
• Automotive electronics ambient lighting/indication applications
• Smart device lighting
• LED strips, light bars and decorative lighting
Product Features
Chips: Grade A chips from leading brands in Taiwan and mainland China deliver lasting luminous efficacy, stable output and strong ESD resistance. Withstands two reflow soldering cycles and has passed thermal shock testing.
Gold wire: 99.99% pure gold wire bonding provides good conductivity, rapid heat transfer and strong stability.
Encapsulant: high-quality material resists sulfurization and blue-light degradation, improving brightness and reliability.
Lead frame: gold-plated/silver-plated options offer good thermal conductivity, easy solder wetting and oxidation resistance.
Packaging: Vacuum moisture-resistant packaging; reel/tape packaging is available for automated SMD production.
Category: 3227 LEDSeries
Quick Reference: Key Optoelectronic Parameters (by Emission Color)
Test conditions: See the IF column for test current; ambient temperature 25℃. Data is taken from each model's datasheet. “—” indicates that the datasheet does not specify this item. Download the corresponding PDF for complete specifications.
| Emission Color | Part Number | Forward Voltage VF (V) | Wavelength / Color Temperature CCT | Luminous Intensity Iv (mcd) | Viewing Angle 2θ½ (°) | Test Current IF (mA) | Operating Temperature |
|---|---|---|---|---|---|---|---|
| Red | HC-S3227DHMRYGTP-F1 | 1.8~2.4 | 617~627 nm | 30~80 | 120 | 5 | -40 ~ +80℃ |
| Yellow-green | 1.8~2.4 | 566~576 nm | 5~30 | 120 | 5 | -40 ~ +80℃ |
Related Products
3227 Bi-Color SMD LED An indicator LED in a 3227 SMD package, with a forward voltage of 1.8~3.4V (depending on emission color) and a 5mA-class drive current (refer to the datasheet). Supports fully automated placement and reflow soldering. Supplied directly by Dongguan Hongcheng Optoelectronics Co., Ltd. (an international member of Guangyu Group with over 20 years of LED packaging experience), it features Grade A chips and 99.99% pure gold wire bonding, and is RoHS certified. Free samples and custom brightness binning, color temperature binning and tape packaging are available. Download the datasheet PDF on this page for complete electrical specifications and mounting dimensions.
Q: What placement-machine accuracy does this LED require?
A: This product uses a 3227 package (3.2×2.7mm) with relatively large pads. Ordinary high-speed placement machines meet its needs, with no special equipment accuracy requirements. Its multiple-pad structure requires each stencil aperture to align with its corresponding pad. Supports lead-free reflow soldering (peak ≤260℃/≤3s).
Product Specifications at a Glance

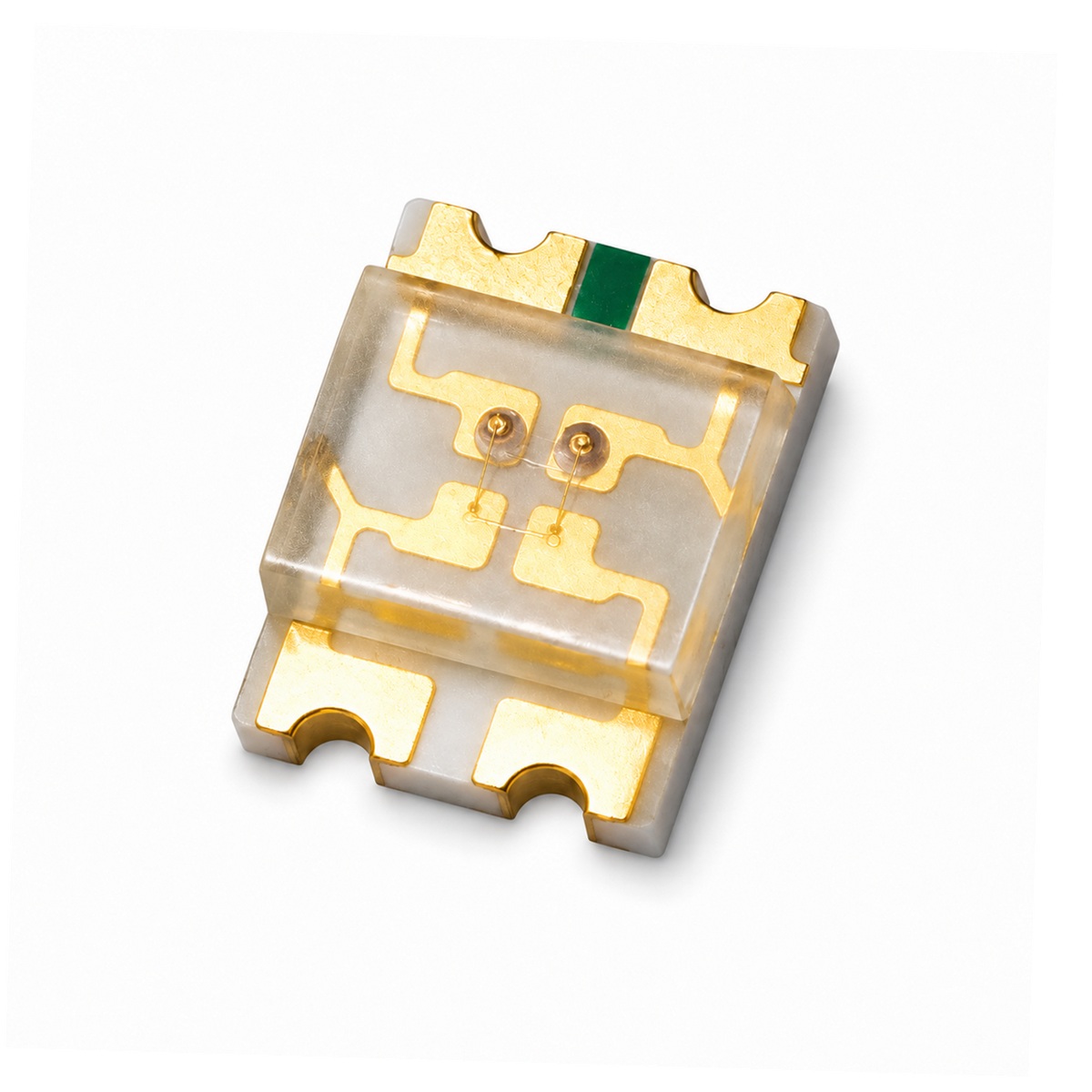

| Product Name | 3227 Bi-Color SMD LED |
|---|---|
| Package: | SMD package |
| Dimensions | 3.2×2.7mm (3227 package) |
| Mounting: | SMD surface mounting (suitable for reflow soldering) |
| Emission Color | Bi-color (dual-chip, model-dependent) |
| Environmental Certification | RoHS |
| Packaging Quantity | 3,000 pcs/Reel (Tape and Reel) |
| Manufacturer | Dongguan Hongcheng Optoelectronics Co., Ltd. |
| Customization: | Custom colors, brightness and wavelength binning, and encapsulants available; confirm details when requesting a quote |
| Detailed Specifications | See the datasheet PDF on this page for complete electrical parameters |
| Minimum Order Quantity (MOQ) | 3K (3,000 pcs, 1 taped reel) |
| Sample Lead Time | Typically 3-4 working days |
| Volume Production Lead Time | Typically 10-15 working days |
💡 Typical Applications: Common applications include PCB status indication, backlighting and ambient lighting. Supports fully automatic SMT assembly and reflow soldering.
Forward Voltage and Wavelength Quick Reference by Color
Voltage varies significantly between colors in the same package. Select current-limiting resistors using the values for the specific color:
| Emission Color | Wavelength Range | Forward Voltage | Chip Material |
|---|---|---|---|
| Red | 620~630nm | 1.8~2.4V | GaASP/GaP |
| Yellow | 585~595nm | 1.8~2.4V | AlGaInP |
| Orange | 600~610nm | 1.8~2.4V | AlGaInP |
| Standard Green | 565~575nm | 1.8~2.4V | AlGaInP |
| Emerald Green | 510~520nm | 2.6~3.2V | InGaN |
| Blue | 450~470nm | 2.8~3.4V | InGaN |
| White | CCT 15000~25000K | 2.8~3.4V | InGaN + phosphor |
Ordering and Inquiry Information
SMD models use tape-and-reel packaging (quantity per reel is subject to the corresponding datasheet), with minimum orders in full reels. Sample lead time is typically 3-4 working days; volume production lead time is typically 10-15 working days (subject to order confirmation). For volume pricing, use the inquiry link on this page or phone/WeChat 139 2571 4318. Specify the exact part number and quantity.
Selection Recommendations
Forward voltage varies considerably by color/model (commonly 1.8~3.4V). Calculate current-limiting resistors using the VF range in the selected model's datasheet, and set the reflow profile according to the corresponding datasheet.
Related Reading: LED Indicator Part Number Comparison Table (Complete 2026 Edition) ｜ Datasheet Download Center
Note: The parameters on this page were compiled against product documentation on 2026-09-17. Items not provided in a datasheet are not assigned uniform values. Refer to the datasheet for the relevant part number.
