4509RGBW SMD LED
4509 Side-Emitting RGB LEDs - Hongcheng Optoelectronics LED Manufacturer
Product Overview

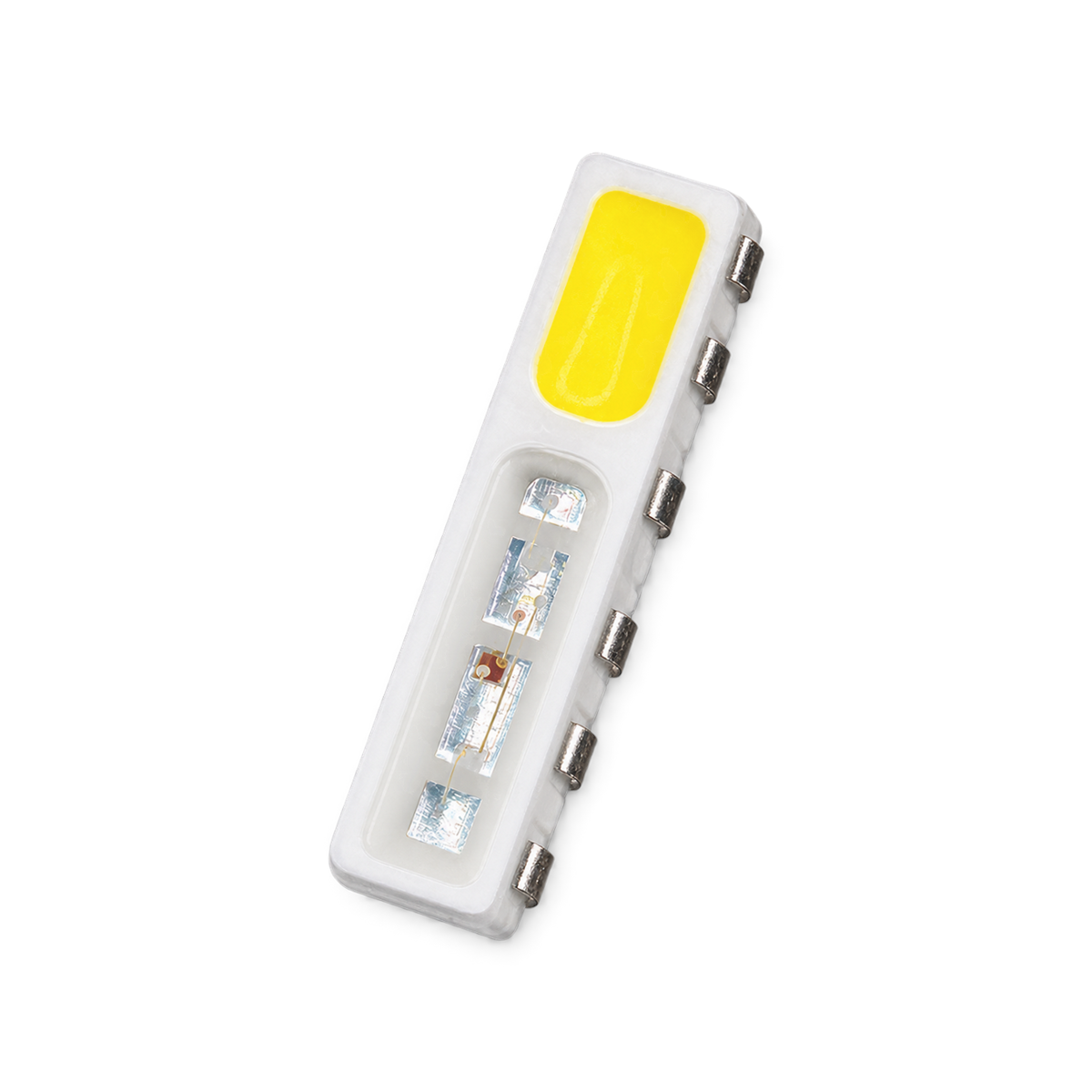

The 4509 side-emitting SMD LED is a large SMD side-emitting light source with stable side emission, high brightness, a large emitting area, good color consistency, good heat dissipation and easy placement.
Key Advantages
• Large side-emitting package: The 4509 package provides a larger emitting area for high-brightness side-emission applications
• High, stable brightness: Bright, uniform emission for volume use in backlight modules, LED bars and strips
• Good heat dissipation: the larger package helps improve product stability
• Wide application range: suits light-guide plates, backlight modules, panel lighting and side-lighting structures
• Easy placement: Supports automated SMT production with efficient soldering
• Customization: Color, brightness, wavelength, voltage, lead frame and packaging can be customized
Applications
• Light guide panels and light pipes
• Backlight modules
• LED bars and strips
• Home appliance control panels
• Advertising signs and lightbox lighting
• Instrument displays
• Edge lighting and decorative lighting
Product Features
Chips: Grade A chips from leading brands in Taiwan and mainland China deliver lasting luminous efficacy, stable output and strong ESD resistance. Withstands two reflow soldering cycles and has passed thermal shock testing.
Gold wire: 99.99% pure gold wire bonding provides good conductivity, rapid heat transfer and strong stability.
Encapsulant: high-quality material resists sulfurization and blue-light degradation, improving brightness and reliability.
Lead frame: gold-plated/silver-plated options offer good thermal conductivity, easy solder wetting and oxidation resistance.
Packaging: Vacuum moisture-proof packaging, with reel/tape-and-reel options for automated SMT production
Category: 4509RGBW
Quick Reference: Key Optoelectronic Parameters (by Emission Color)
Test conditions: See the IF column for test current; ambient temperature 25℃. Data is taken from each model's datasheet. “—” indicates that the datasheet does not specify this item. Download the corresponding PDF for complete specifications.
| Emission Color | Part Number | Forward Voltage VF (V) | Wavelength / Color Temperature CCT | Luminous Intensity Iv (mcd) | Viewing Angle 2θ½ (°) | Test Current IF (mA) | Operating Temperature |
|---|---|---|---|---|---|---|---|
| White | HC-4509T4C-RGBW-BBBB-LJHX | 2.6~3.2 | 4500~5500 K | 600~1500 | — | 20 | -20 ~ +80℃ |
| Red | 1.8~2.4 | 615~625 nm | 500~1000 | — | 20 | -20 ~ +80℃ | |
| Pure Green | 2.6~3.2 | 520~530 nm | 600~1500 | — | 20 | -20 ~ +80℃ | |
| Blue | 2.6~3.2 | 460~470 nm | 180~400 | — | 20 | -20 ~ +80℃ |
Related Products
4509RGBW SMD LEDs An LED in a 4509 package, designed as a SMD indicator LED with a forward voltage of 1.8~3.4V (depending on emission color) and a drive current in the 20mA range. Supports fully automatic SMT assembly and reflow soldering. Factory-direct from Dongguan Hongcheng Optoelectronics Co., Ltd. (an international member of Guangyu Group with over 20 years of LED packaging experience), it uses Grade A chips and 99.99% pure gold wire bonding and is RoHS certified. Free samples and custom brightness binning, color-temperature binning and tape packaging are available. Download the datasheet PDF on this page for complete electrical parameters and mounting dimensions.
Q: What are the chromaticity BIN ranges for addressable LEDs?
A: The full-color series is shipped with brightness and color binning based on CIE chromaticity coordinates. Color difference within the same batch is Δu'v'≤0.003. Custom BIN ranges are available to meet customer color-gamut requirements.
Q: What placement-machine accuracy does this LED require?
A: This 4509 package (4.5×0.9mm) has relatively large pads. A standard high-speed placement machine is sufficient, with no special accuracy requirements. Its multiple-pad structure requires each stencil aperture to align with the corresponding pad. Lead-free reflow soldering is supported (peak ≤260℃/≤3s).
Product Specifications at a Glance
| Product Name | 4509RGBW SMD LEDs |
|---|---|
| Package: | SMD Package (Side-emitting) |
| Dimensions | 4.5×0.9mm (4509 package) |
| Mounting: | SMD surface mounting (suitable for reflow soldering) |
| Emission Color | RGBW 4-in-1 (Color-changing) |
| Environmental Certification | RoHS |
| Packaging Quantity | 5,000 pcs/Reel (Tape and Reel) |
| Manufacturer | Dongguan Hongcheng Optoelectronics Co., Ltd. |
| Customization: | Custom colors, brightness and wavelength binning, and encapsulants available; confirm details when requesting a quote |
| Detailed Specifications | See the datasheet PDF on this page for complete electrical parameters |
| Minimum Order Quantity (MOQ) | 5K (5,000 pcs, 1 taped reel) |
| Sample Lead Time | Typically 3-4 working days |
| Volume Production Lead Time | Typically 10-15 working days |
💡 Typical Applications: Common applications include PCB status indication, backlighting and ambient lighting. Supports fully automatic SMT assembly and reflow soldering.
Forward Voltage and Wavelength Quick Reference by Color
Voltage varies significantly between colors in the same package. Select current-limiting resistors using the values for the specific color:
| Emission Color | Wavelength Range | Forward Voltage | Chip Material |
|---|---|---|---|
| Red | 620~625nm | 1.8~2.4V | AlGaInP |
| Yellow | 585~595nm | 1.8~2.4V | AlGaInP |
| Orange | 600~610nm | 1.8~2.4V | AlGaInP |
| Standard Green | 565~575nm | 1.8~2.4V | AlGaInP |
| Emerald Green | 520~530nm | 2.8~3.4V | InGaN |
| Blue | 450~470nm | 2.8~3.4V | InGaN |
| White (Neutral White) | Full Spectrum | 3.0~3.4V | InGaN + phosphor |
Ordering and Inquiry Information
Packaging quantity refers to taped packaging (5,000 pcs per reel); minimum order quantity: 5K (5,000 pcs, orders start at one full taped reel). Sample lead time is generally 3-4 working days, and volume production lead time is generally 10-15 working days (subject to order confirmation). For volume pricing, use the inquiry form on this page or call/message us on WeChat at 139 2571 4318. Specify the exact model and quantity in your inquiry.
Selection Recommendations
Forward voltage varies considerably by color/model (commonly 1.8~3.4V). Calculate current-limiting resistors using the VF range in the selected model's datasheet, and set the reflow profile according to the corresponding datasheet.
Related Reading: LED Indicator Part Number Comparison Table (Complete 2026 Edition) ｜ Datasheet Download Center
Note: The parameters on this page were compiled against product documentation on 2026-09-17. Items not provided in a datasheet are not assigned uniform values. Refer to the datasheet for the relevant part number.
