0602 Side-Emitting Bi-Color SMD LED
0602 Side-emitting Dual-color SMD LEDs - Hongcheng Optoelectronics LED Manufacturer
Product Overview

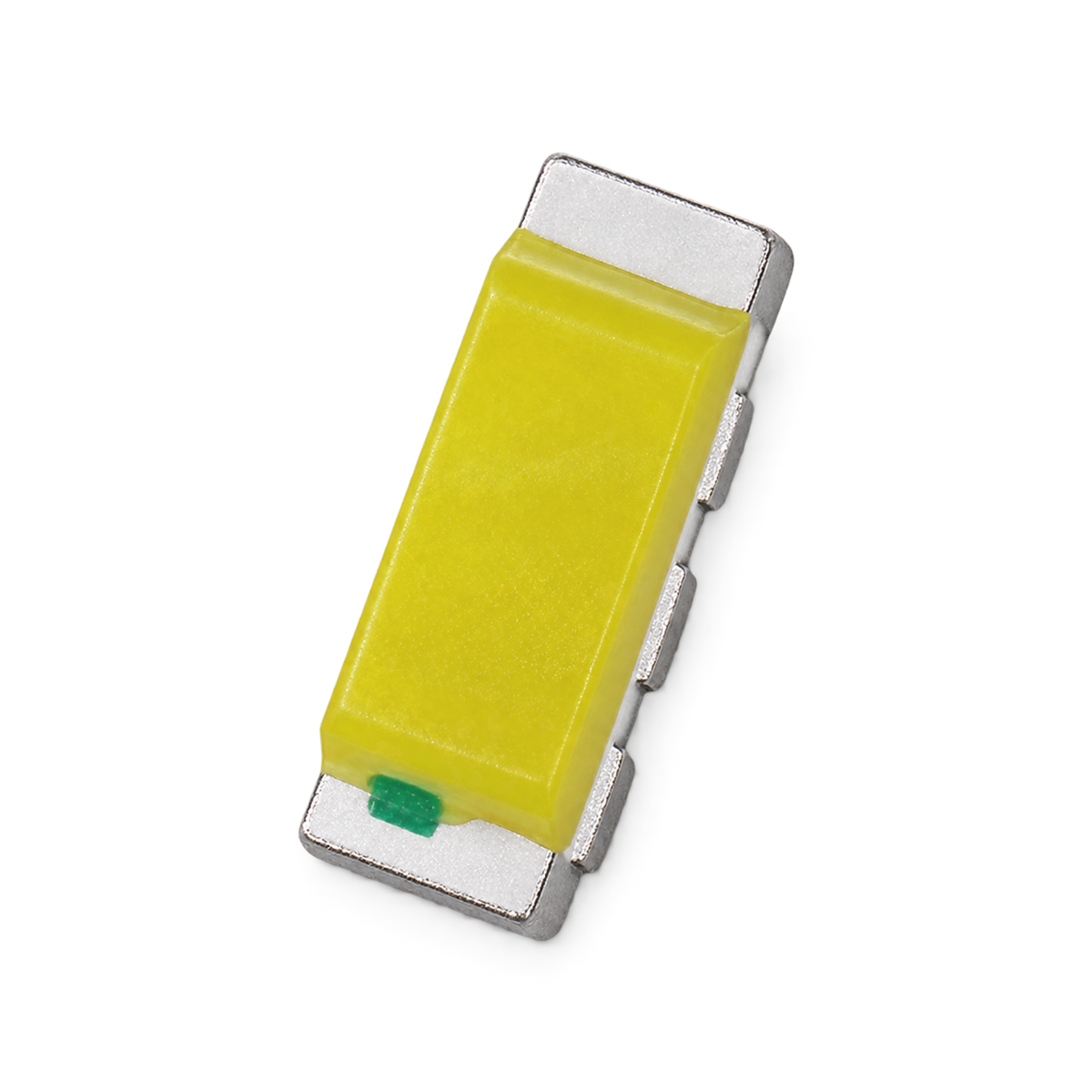

The 0602 side-emitting SMD LED is a compact SMD side-emitting light source with small size, stable side emission, good brightness consistency, low power consumption and easy placement. Suitable for button backlighting, side indicators, light pipes, light guide plates, smart wearables, digital products, instruments and various precision electronics. Custom colors, brightness, voltages, wavelengths and packaging are available to customer requirements.
Key Advantages
• Compact side emission: The 0602 package suits compact electronic product structures
• Stable side emission: suitable for button backlighting, side indicators, light pipes and light-guide plates
• Good brightness consistency: Uniform emission and stable color for volume production
• Low-power applications: Suitable for portable electronics, smart wearables and low-power applications
• Automated placement: Supports SMT production with efficient soldering
• Parameter binning available: Brightness, wavelength, voltage and other parameters can be binned to improve finished-product consistency
Applications
• Button backlighting
• Side indicators
• Light pipes and light guide plates
• Smart wearable devices
• Bluetooth earphones and digital products
• Instrument displays
• Medical/beauty electronic equipment
Product Features
Chips: Grade A chips from leading brands in Taiwan and mainland China deliver lasting luminous efficacy, stable output and strong ESD resistance. Withstands two reflow soldering cycles and has passed thermal shock testing.
Gold wire: 99.99% pure gold wire bonding for good conductivity and high stability.
Encapsulant: high-quality material resists sulfurization and blue-light degradation, improving brightness and reliability.
Lead frame: gold-plated/silver-plated options offer good thermal conductivity, easy solder wetting and oxidation resistance.
Packaging: Vacuum moisture-resistant packaging; reel/tape packaging is available for automated SMD production.
Category: 0602 Side-emitting Dual-color
Quick Reference: Key Optoelectronic Parameters (by Emission Color)
Test conditions: See the IF column for test current; ambient temperature 25℃. Data is taken from each model's datasheet. “—” indicates that the datasheet does not specify this item. Download the corresponding PDF for complete specifications.
| Emission Color | Part Number | Forward Voltage VF (V) | Wavelength / Color Temperature CCT | Luminous Intensity Iv (mcd) | Viewing Angle 2θ½ (°) | Test Current IF (mA) | Operating Temperature |
|---|---|---|---|---|---|---|---|
| White | HC-L0602QGQWD-PAH1 | 2.6~3.0 | Chromaticity Coordinates X 0.26~0.28 / Y 0.25~0.28 | 350 | 120 | 20 | -30~+85℃ |
| Pure Green | 2.6~3.0 | 520~530 nm | 350 | 120 | 20 | -30~+85℃ | |
| White | HC-L0602QRQWD-PAH1 | 2.6~3.0 | Chromaticity Coordinates X 0.26~0.28 / Y 0.25~0.28 | 350 | 120 | 20 | -30~+85℃ |
| Red | 1.8~2.4 | 615~630 nm | 170 | 120 | 20 | -30~+85℃ | |
| Red | HC-L0602QBQRC-HQRE1 | 1.8~2.6 | 615~630 nm | 140 | 120 | 20 | -30~+85℃ |
| Blue | 2.8~3.6 | 461~473 nm | 140 | 120 | 20 | -30~+85℃ |
0602 Side-Emitting Dual-Color SMD LEDs An LED in a 0602 package, designed as a side-emitting SMD LED with a forward voltage of 1.8~3.4V (depending on emission color) and 20mA-class drive. Supports fully automatic SMT assembly and reflow soldering. Factory-direct from Dongguan Hongcheng Optoelectronics Co., Ltd. (an international member of Guangyu Group with over 20 years of LED packaging experience), it uses Grade A chips and 99.99% pure gold wire bonding and is RoHS certified. Free samples and custom brightness binning, color-temperature binning and tape packaging are available. Download the datasheet PDF on this page for complete electrical parameters and mounting dimensions.
Q: Can free samples be provided for testing?
A: Yes. Samples of standard models are free and ship within 3-4 working days, with datasheets included. Small pilot production runs are available for validation before volume orders.
Q: What placement-machine accuracy does this LED require?
A: This product uses a 0602 package (1.6×0.6mm). Conventional high-speed placement machines (±0.1mm-class accuracy) can place it reliably. Its multiple-pad structure requires each stencil aperture to align with its corresponding pad. Supports lead-free reflow soldering (peak ≤260℃/≤3s).
Product Specifications at a Glance
| Product Name | 0602 Side-Emitting Dual-Color SMD LEDs |
|---|---|
| Package: | SMD Package (Side-emitting) |
| Dimensions | 1.6×0.6mm (0602 package) |
| Mounting: | SMD surface mounting (suitable for reflow soldering) |
| Emission Color | Bi-color (dual-chip, model-dependent) |
| Environmental Certification | RoHS |
| Packaging Quantity | Tape-and-reel packaging (quantity per reel is specified in the corresponding datasheet) |
| Manufacturer | Dongguan Hongcheng Optoelectronics Co., Ltd. |
| Customization: | Custom colors, brightness and wavelength binning, and encapsulants available; confirm details when requesting a quote |

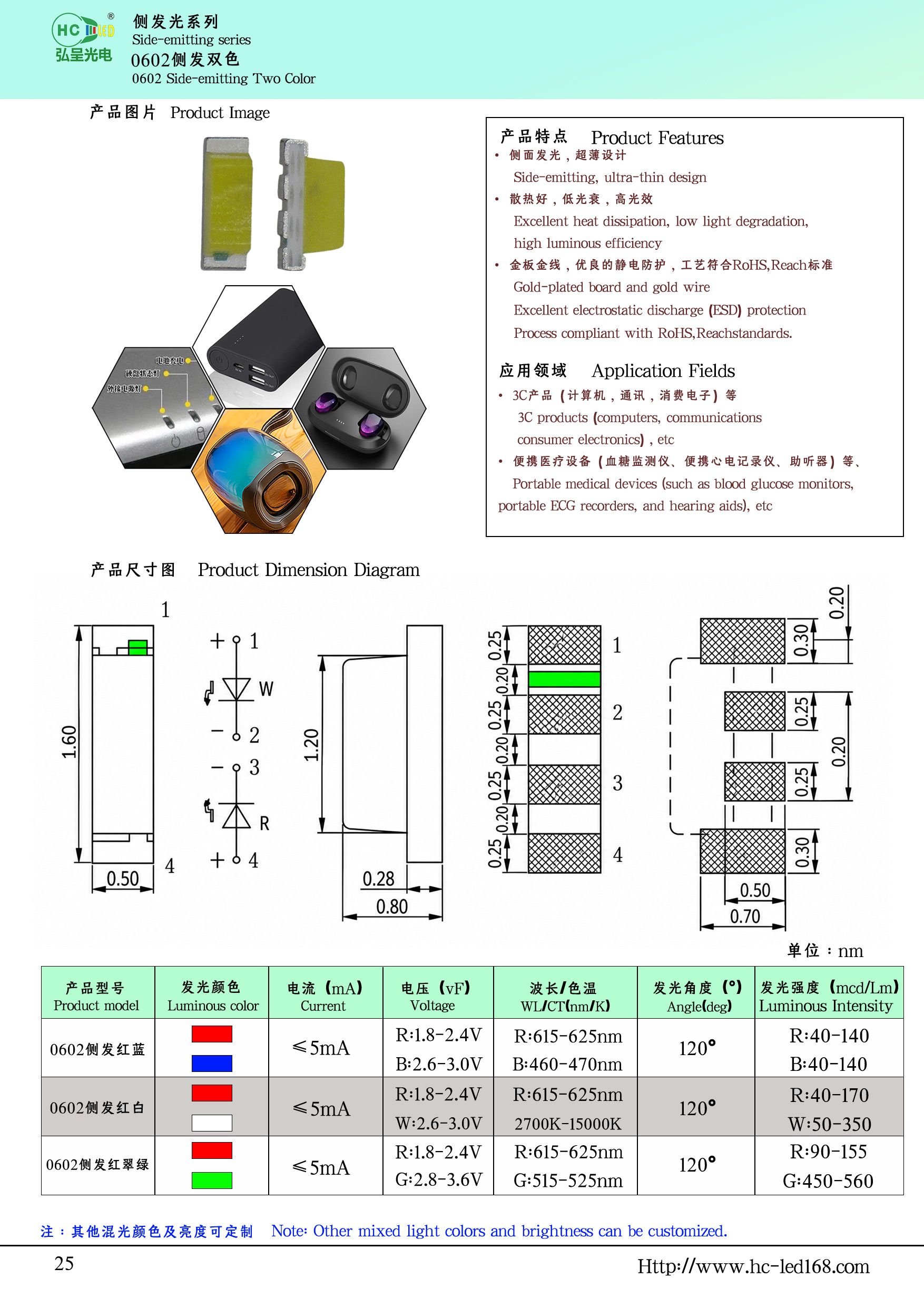

| Detailed Specifications | See the datasheet PDF on this page for complete electrical parameters |
| Minimum Order Quantity (MOQ) | 1 reel (orders start at one full taped reel; see the corresponding datasheet for quantity per reel) |
| Sample Lead Time | Typically 3-4 working days |
| Volume Production Lead Time | Typically 10-15 working days |
💡 Typical Applications: Common applications include PCB status indication, backlighting and ambient lighting. Supports fully automatic SMT assembly and reflow soldering.
Ordering and Inquiry Information
SMD models use tape-and-reel packaging (quantity per reel is subject to the corresponding datasheet), with minimum orders in full reels. Sample lead time is typically 3-4 working days; volume production lead time is typically 10-15 working days (subject to order confirmation). For volume pricing, use the inquiry link on this page or phone/WeChat 139 2571 4318. Specify the exact part number and quantity.
Selection Recommendations
Forward voltage varies considerably by color/model (commonly 1.8~3.4V). Calculate current-limiting resistors using the VF range in the selected model's datasheet, and set the reflow profile according to the corresponding datasheet.
Related Reading: LED Indicator Part Number Comparison Table (Complete 2026 Edition) ｜ Datasheet Download Center
Note: The parameters on this page were compiled against product documentation on 2026-09-17. Items not provided in a datasheet are not assigned uniform values. Refer to the datasheet for the relevant part number.
