Product Overview

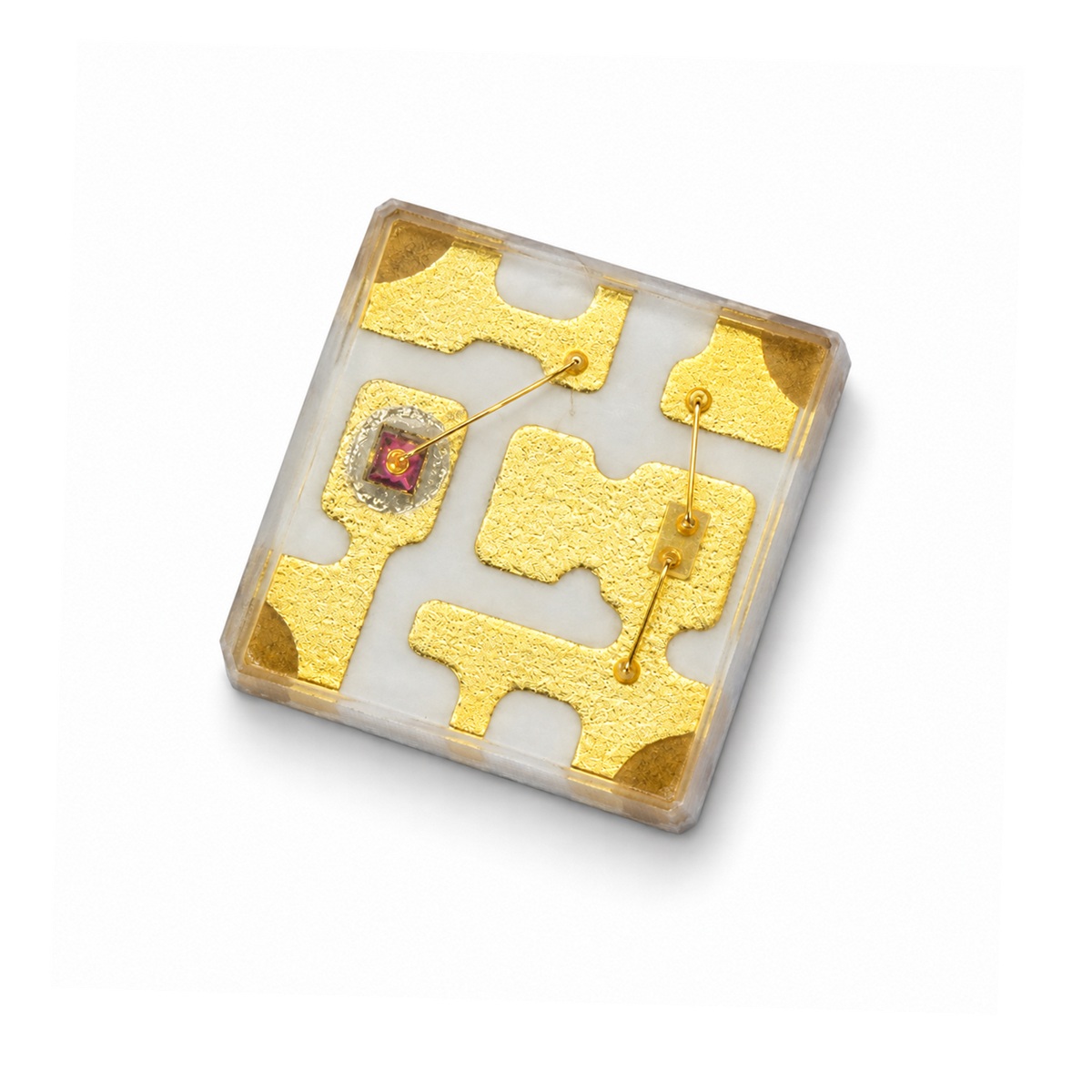

The 1010 SMD LED is a compact SMD light source with a top-emitting structure. It offers small size, stable brightness, uniform emission, good color consistency and easy placement.
Key Advantages
• Small package: 1010 package design suits compact electronic products and small lighting modules
• Top emission: Suitable for panel indication, status displays and backlighting structures
• Stable emission: uniform brightness and good color consistency, suitable for volume production
• Easy placement: Supports automated SMT production with efficient soldering
• Multiple colors available: custom red, yellow, blue, green, white, warm white, orange, ice blue and other colors
• Binning available: Brightness, wavelength, voltage and other parameters can be binned to improve finished-product consistency
Applications
• Electronic product indicators
• Instrument and meter display indicators
• Home appliance control panel backlighting
• Communication equipment status indication
• Smart wearables/digital products
• Small backlight modules
• Precision electronic products
Product Features
Chips: Grade A chips from leading brands in Taiwan and mainland China deliver lasting luminous efficacy, stable output and strong ESD resistance. Withstands two reflow soldering cycles and has passed thermal shock testing.
Gold wire: 99.99% pure gold wire bonding for good conductivity and high stability.
Encapsulant: high-quality material resists sulfurization and blue-light degradation, improving brightness and reliability.
Lead frame: gold-plated/silver-plated options offer good thermal conductivity, easy solder wetting and oxidation resistance.
Packaging: Vacuum moisture-resistant packaging; reel/tape packaging is available for automated SMD production.
Category: 1010 SMD LEDs
Quick Reference: Key Optoelectronic Parameters (by Emission Color)
Test conditions: See the IF column for test current; ambient temperature 25℃. Data is taken from each model's datasheet. “—” indicates that the datasheet does not specify this item. Download the corresponding PDF for complete specifications.
| Emission Color | Part Number | Forward Voltage VF (V) | Wavelength / Color Temperature CCT | Luminous Intensity Iv (mcd) | Viewing Angle 2θ½ (°) | Test Current IF (mA) | Operating Temperature |
|---|---|---|---|---|---|---|---|
| Red | HC-L0404QRQBC-NEGC1 | 1.6~2.1 | 619~625 nm | 44 | 120 | 5 | -30~+85℃ |
| Blue | 2.6~3.1 | 462.5~470 nm | 53 | 120 | 5 | -30~+85℃ |
Related Products
1010 Bi-Color SMD LED An LED in a 1010 (1.0×1.0mm) package, designed as a SMD indicator LED with a forward voltage of 1.8~3.4V (depending on emission color) and 5mA-class drive (subject to the datasheet). Supports fully automatic SMT assembly and reflow soldering. Factory-direct from Dongguan Hongcheng Optoelectronics Co., Ltd. (an international member of Guangyu Group with over 20 years of LED packaging experience), it uses Grade A chips and 99.99% pure gold wire bonding and is RoHS certified. Free samples and custom brightness binning, color-temperature binning and tape packaging are available. Download the datasheet PDF on this page for complete electrical parameters and mounting dimensions.
Q: What placement-machine accuracy does this LED require?
A: This product uses a small 1010 package (1.0×1.0mm). A high-precision placement machine with ±0.05mm-class positioning accuracy and a precision stencil is recommended. Its multiple-pad structure requires each stencil aperture to align with its corresponding pad. Supports lead-free reflow soldering (peak ≤260℃/≤3s).
Product Specifications at a Glance
| Product Name | 1010 Bi-Color SMD LED |
|---|---|
| Package: | SMD package |
| Dimensions | 1.0×1.0mm |
| Mounting: | SMD surface mounting (suitable for reflow soldering) |
| Emission Color | Bi-color (dual-chip, model-dependent) |
| Environmental Certification | RoHS |
| Packaging Quantity | Tape-and-reel packaging (quantity per reel is specified in the corresponding datasheet) |
| Manufacturer | Dongguan Hongcheng Optoelectronics Co., Ltd. |
| Customization: | Custom colors, brightness and wavelength binning, and encapsulants available; confirm details when requesting a quote |
| Detailed Specifications | See the datasheet PDF on this page for complete electrical parameters |
| Minimum Order Quantity (MOQ) | 1 reel (orders start at one full taped reel; see the corresponding datasheet for quantity per reel) |
| Sample Lead Time | Typically 3-4 working days |
| Volume Production Lead Time | Typically 10-15 working days |
💡 Typical Applications: Common applications include PCB status indication, backlighting and ambient lighting. Supports fully automatic SMT assembly and reflow soldering.
Forward Voltage and Wavelength Quick Reference by Color
Voltage varies significantly between colors in the same package. Select current-limiting resistors using the values for the specific color:
| Emission Color | Wavelength Range | Forward Voltage | Chip Material |
|---|---|---|---|
| Red | 620~630nm | 1.8~2.4V | GaASP/GaP |
| Yellow | 585~595nm | 1.8~2.4V | AlGaInP |
| Orange | 600~610nm | 1.8~2.4V | AlGaInP |
| Standard Green | 565~575nm | 1.8~2.4V | AlGaInP |
| Emerald Green | 510~520nm | 2.6~3.2V | InGaN |
| Blue | 450~470nm | 2.8~3.4V | InGaN |
| White | CCT 15000~25000K | 2.8~3.4V | InGaN + phosphor |
Ordering and Inquiry Information
SMD models use tape-and-reel packaging (quantity per reel is subject to the corresponding datasheet), with minimum orders in full reels. Sample lead time is typically 3-4 working days; volume production lead time is typically 10-15 working days (subject to order confirmation). For volume pricing, use the inquiry link on this page or phone/WeChat 139 2571 4318. Specify the exact part number and quantity.
Selection Recommendations
Forward voltage varies considerably by color/model (commonly 1.8~3.4V). Calculate current-limiting resistors using the VF range in the selected model's datasheet, and set the reflow profile according to the corresponding datasheet.
Related Reading: LED Indicator Part Number Comparison Table (Complete 2026 Edition) ｜ Datasheet Download Center
Note: The parameters on this page were compiled against product documentation on 2026-09-17. Items not provided in a datasheet are not assigned uniform values. Refer to the datasheet for the relevant part number.
