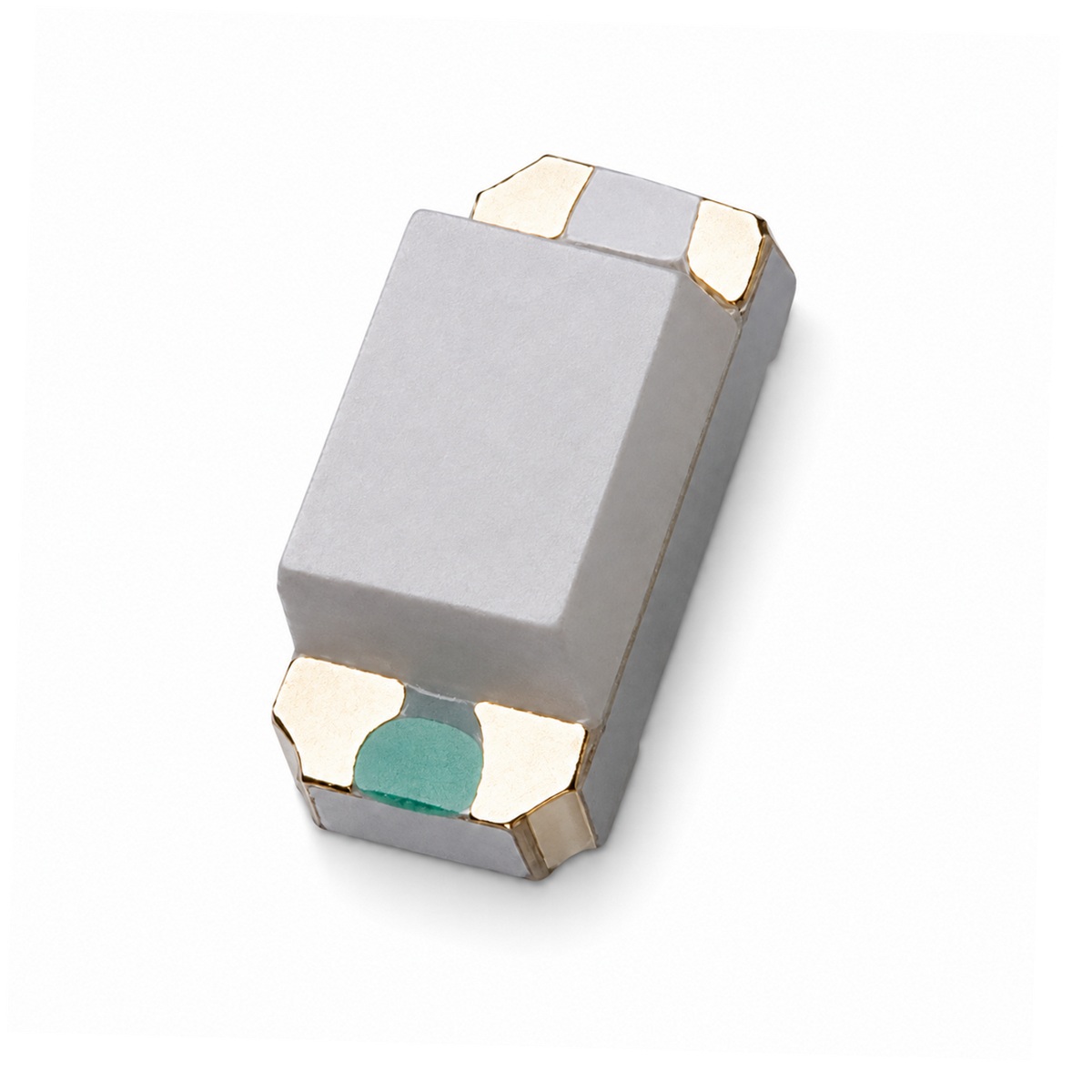

1608 Bi-Color SMD LED
1608 Dual-Color SMD LEDs - Hongcheng Optoelectronics LED Manufacturer
Product Overview
The 1608 SMD LED is a compact SMD LED light source featuring small size, stable brightness, low power consumption, good color consistency and easy placement.
Key Advantages
• Small package: 1608 package design suits compact electronics and high-density placement
• Stable emission: uniform brightness and good color consistency, suitable for volume production
• Low power consumption: Suitable for portable electronics, smart devices and low-power applications
• Easy placement: supports automated SMT production with high soldering efficiency
• Multiple colors: Custom red, yellow, blue, green, white, warm white, orange, violet and other colors available
• Batch consistency: Brightness, wavelength, voltage and other parameters can be binned to improve finished-product consistency
Applications
• Electronic product indicators
• Instrument displays
• Home appliance control panel backlighting
• Communication equipment status indication
• Smart wearable devices
• Digital product status lights
• Small backlight modules
Product Features
Chips: Grade A chips from leading brands in Taiwan and mainland China deliver lasting luminous efficacy, stable output and strong ESD resistance. Withstands two reflow soldering cycles and has passed thermal shock testing.
Gold wire: 99.99% pure gold wire bonding for good conductivity and high stability.
Encapsulant: high-quality material resists sulfurization and blue-light degradation, improving brightness and reliability.
Lead frame: gold-plated/silver-plated options offer good thermal conductivity, easy solder wetting and oxidation resistance.
Packaging: Vacuum moisture-resistant packaging; reel/tape packaging is available for automated SMD production.
Category: 1608 Dual-color
Quick Reference: Key Optoelectronic Parameters (by Emission Color)
Test conditions: See the IF column for test current; ambient temperature 25℃. Data is taken from each model's datasheet. “—” indicates that the datasheet does not specify this item. Download the corresponding PDF for complete specifications.
| Emission Color | Part Number | Forward Voltage VF (V) | Wavelength / Color Temperature CCT | Luminous Intensity Iv (mcd) | Viewing Angle 2θ½ (°) | Test Current IF (mA) | Operating Temperature |
|---|---|---|---|---|---|---|---|
| White | HC-S1608BHMRWTP-F1 | 2.6~3.2 | — | 140~300 | 120 | 5 | -40 ~ +80℃ |
| Red | 1.8~2.4 | 617~626 nm | 25~80 | 120 | 5 | -40 ~ +80℃ | |
| Orange | HC-S1608BHMOGTP-F1 | 1.8~2.4 | 600~610 nm | 50~160 | 120 | 10 | -40 ~ +80℃ |
| Pure Green | 2.8~3.7 | 520~530 nm | 126~361 | 120 | 10 | -40 ~ +80℃ | |
| Red | HC-S1608BHMRGTP-F1 | 1.8~2.4 | 617~627 nm | 30~80 | 120 | 5 | -40 ~ +80℃ |
| Pure Green | 2.5~3.1 | 520~530 nm | 200~360 | 120 | 5 | -40 ~ +80℃ | |
| Orange | HC-H1608BAMOBTP-F1 | 1.8~2.4 | 600~610 nm | 35~65 | 120 | 5 | -40 ~ +80℃ |
| Blue | 2.8~3.2 | 460~475 nm | 30~60 | 120 | 5 | -40 ~ +80℃ | |
| Red | HC-S1608BHMRBTP-F1 | 1.8~2.2 | 617~630 nm | 20~80 | 120 | 5 | -40 ~ +80℃ |
| Blue | 2.5~3 | 460~472 nm | 20~90 | 120 | 5 | -40 ~ +80℃ |
Related Products
1608 Dual-color SMD LEDs An LED in a 1608 (1.6×0.8mm) package, designed as a SMD indicator LED with a forward voltage of 1.8~3.4V (depending on emission color) and 5mA-class drive (subject to the datasheet). Supports fully automatic SMT assembly and reflow soldering. Factory-direct from Dongguan Hongcheng Optoelectronics Co., Ltd. (an international member of Guangyu Group with over 20 years of LED packaging experience), it uses Grade A chips and 99.99% pure gold wire bonding and is RoHS certified. Free samples and custom brightness binning, color-temperature binning and tape packaging are available. Download the datasheet PDF on this page for complete electrical parameters and mounting dimensions.
Q: What placement-machine accuracy does this LED require?
A: This product uses a 1608 package (1.6×0.8mm). Conventional high-speed placement machines (±0.1mm-class accuracy) can place it reliably. Its multiple-pad structure requires each stencil aperture to align with its corresponding pad. Supports lead-free reflow soldering (peak ≤260℃/≤3s).
Product Specifications at a Glance
| Product Name | 1608 Dual-color SMD LEDs |
|---|---|
| Package: | SMD package |
| Dimensions | 1.6×0.8mm |
| Mounting: | SMD surface mounting (suitable for reflow soldering) |
| Emission Color | Bi-color (dual-chip, model-dependent) |
| Environmental Certification | RoHS |
| Packaging Quantity | 4,000 pcs/reel (taped) |
| Manufacturer | Dongguan Hongcheng Optoelectronics Co., Ltd. |
| Customization: | Custom colors, brightness and wavelength binning, and encapsulants available; confirm details when requesting a quote |
| Detailed Specifications | See the datasheet PDF on this page for complete electrical parameters |
| Minimum Order Quantity (MOQ) | 4K (4,000 pcs, Tape and Reel 1 Reel) |
| Sample Lead Time | Typically 3-4 working days |
| Volume Production Lead Time | Typically 10-15 working days |
💡 Typical Applications: Common applications include PCB status indication, backlighting and ambient lighting. Supports fully automatic SMT assembly and reflow soldering.
Forward Voltage and Wavelength Quick Reference by Color
Voltage varies significantly between colors in the same package. Select current-limiting resistors using the values for the specific color:
| Emission Color | Wavelength Range | Forward Voltage | Chip Material |
|---|---|---|---|
| Red | 620~630nm | 1.8~2.4V | GaASP/GaP |
| Yellow | 585~595nm | 1.8~2.4V | AlGaInP |
| Orange | 600~610nm | 1.8~2.4V | AlGaInP |
| Standard Green | 565~575nm | 1.8~2.4V | AlGaInP |
| Emerald Green | 510~520nm | 2.6~3.2V | InGaN |
| Blue | 450~470nm | 2.8~3.4V | InGaN |
| White | CCT 15000~25000K | 2.8~3.4V | InGaN + phosphor |
Q: Which color combinations are available for 1608 dual-color LEDs?
A: Combinations in production include red/white, orange/emerald green and red/emerald green (for example, HC-S1608BHMRWTP-F1 red/white). A 3-pin common-cathode/common-anode structure provides dual-color status indication with one LED.
Ordering and Inquiry Information
SMD models use tape-and-reel packaging (quantity per reel is subject to the corresponding datasheet), with minimum orders in full reels. Sample lead time is typically 3-4 working days; volume production lead time is typically 10-15 working days (subject to order confirmation). For volume pricing, use the inquiry link on this page or phone/WeChat 139 2571 4318. Specify the exact part number and quantity.
Selection Recommendations
Forward voltage varies considerably by color/model (commonly 1.8~3.4V). Calculate current-limiting resistors using the VF range in the selected model's datasheet, and set the reflow profile according to the corresponding datasheet.
Related Reading: LED Indicator Part Number Comparison Table (Complete 2026 Edition) ｜ Datasheet Download Center
Note: The parameters on this page were compiled against product documentation on 2026-09-17. Items not provided in a datasheet are not assigned uniform values. Refer to the datasheet for the relevant part number.
