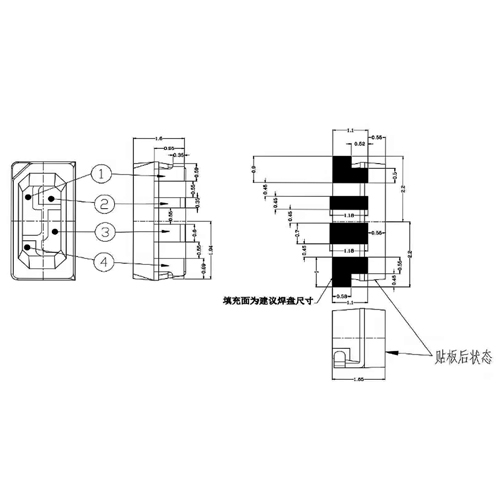

4020 side emitting light
Product Features:
Chip: Adopting top brands from Taiwan and mainland ChinaGrade AThe chip has a long lifespan, long-lasting light effect, stable output, strong anti-static ability, can withstand two reflow soldering cycles, and can withstand cold and hot shock tests（Our company does not use B-grade or specialized chips）
Gold wire: Welding with 99.9% pure gold wire, fast heat dissipation, good conductivity, and good stability.
Adhesive: Made of high-quality silicone, providing dual protection against vulcanization; High refractive index, exciting the highest brightness.
Bracket: Silver plated with good thermal conductivitymoisture-proofBracket, easy to tin and not prone to oxidation.
Packaging: Vacuum packaging with a minimum packaging of 2K per roll
Hongcheng Optoelectronics 4020 Side emitting Red Light Product Specification Click to download
Product specification sheet Click to download
Product specification sheet Click to download
Product specification sheet Click to download
Product specification sheet Click to download
Product specification sheet Click to download
Product specification sheet Click to download
monochrome
| luminescent color | material | beam angle | Forward voltage | luminance （@20mA） |
Color temperature/wavelength (nm) | |||
| Trp | Max | Min | Max | Min | Max | |||
| RED | AIG alnP | 120° | 1.8 | 2.4 | 400 | 600 | 620 | 630 |
| Amber | AIG alnP | 120° | ||||||
| Yellow | AIG alnP | 120° | ||||||
| Pure Green | InG aN/GaN | 120° | 2.8 | 3.4 | 1000 | 2000 | 520 | 530 |
| Blue | InG aN/GaN | 120° | ||||||
| Wanw White | InG aN/GaN | 120° | ||||||
| White | InG aN/GaN | 120° | ||||||
two-color
| luminescent color | material | beam angle | Forward voltage | luminance （@20mA） |
Color temperature/wavelength (nm) | |||
| Trp | Max | Min | Max | Min | Max | |||
| RED | AIG alnP | 120° | 1.8 | 2.4 | 400 | 600 | 620 | 630 |
| Blue | InG aN/GaN | 2.8 | 3.4 | 200 | 400 | 465 | 470 | |
tricolor
| luminescent color | material | beam angle | Forward voltage | luminance （@20mA） |
Color temperature/wavelength (nm) | |||
| Trp | Max | Min | Max | Min | Max | |||
| RED | AIG alnP | 120° | 1.8 | 2.4 | 400 | 600 | 620 | 630 |
| Pure Green | InG aN/GaN | 2.8 | 3.4 | 1400 | 1600 | 525 | 530 | |
| Blue | InG aN/GaN | 2.8 | 3.4 | 200 | 400 | 465 | 470 | |
