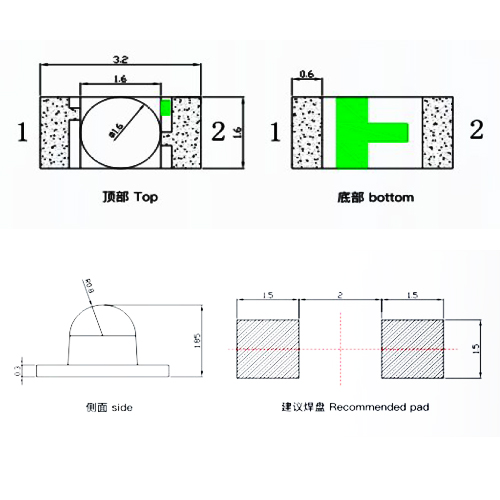

1206 lens patch lamp
Product Features:
Chip: Adopting top brands from Taiwan and mainland ChinaGrade AThe chip has a long lifespan, long-lasting light effect, stable output, strong anti-static ability, can withstand two reflow soldering cycles, and can withstand cold and hot shock tests（Our company does not use B-grade or special project chips
Gold wire: Welding with 99.9% pure gold wire, fast heat dissipation, good conductivity, and good stability.
Glue: High quality glue is used to provide dual protection against vulcanization and pressure; High refractive index, exciting the highest brightness.
Bracket: It has good thermal conductivity (gold plating) (silver plating). There are two types of brackets to choose from, which are easy to tin and not easy to oxidize.
Packaging: Vacuum packaging with minimum packaging of 4K per roll
Hongcheng Optoelectronics 1206 Lens Red Light Product SpecificationClick to download
Hongcheng Optoelectronics 1206 Lens Orange Product Specification Click to download
Hongcheng Optoelectronics 1206 Lens Yellow Product Specification Click to download
Hongcheng Optoelectronics 1206 Yellow Green Light Product Specification Click to download
Hongcheng Optoelectronics 1206 Lens Green Light Product Specification Click to download
Hongcheng Optoelectronics 1206 Blue Light Product Specification Click to download
| luminescent color | material | beam angle | Forward voltage | luminance （@20mA） |
Color temperature/wavelength (nm) | |||
| Trp | Max | Min | Max | Min | Max | |||
| RED | AIG alnP | 30° | 1.8 | 2.4 | 60 | 160 | 620 | 630 |
| Amber | AIG alnP | 30° | 1.8 | 2.4 | 80 | 160 | 600 | 610 |
| Yellow | AIG alnP | 30° | 1.8 | 2.4 | 80 | 160 | 585 | 595 |
| Yellow Green | AIG alnP | 30° | 1.8 | 2.4 | 25 | 80 | 565 | 575 |
| Pure Green | InG aN/GaN | 30° | 2.8 | 3.4 | 250 | 400 | 520 | 530 |
| Blue | InG aN/GaN | 30° | 2.8 | 3.4 | 60 | 160 | 460 | 470 |
Dear customers, if you have any special customization, please consult our business
